Engine Control Part 16

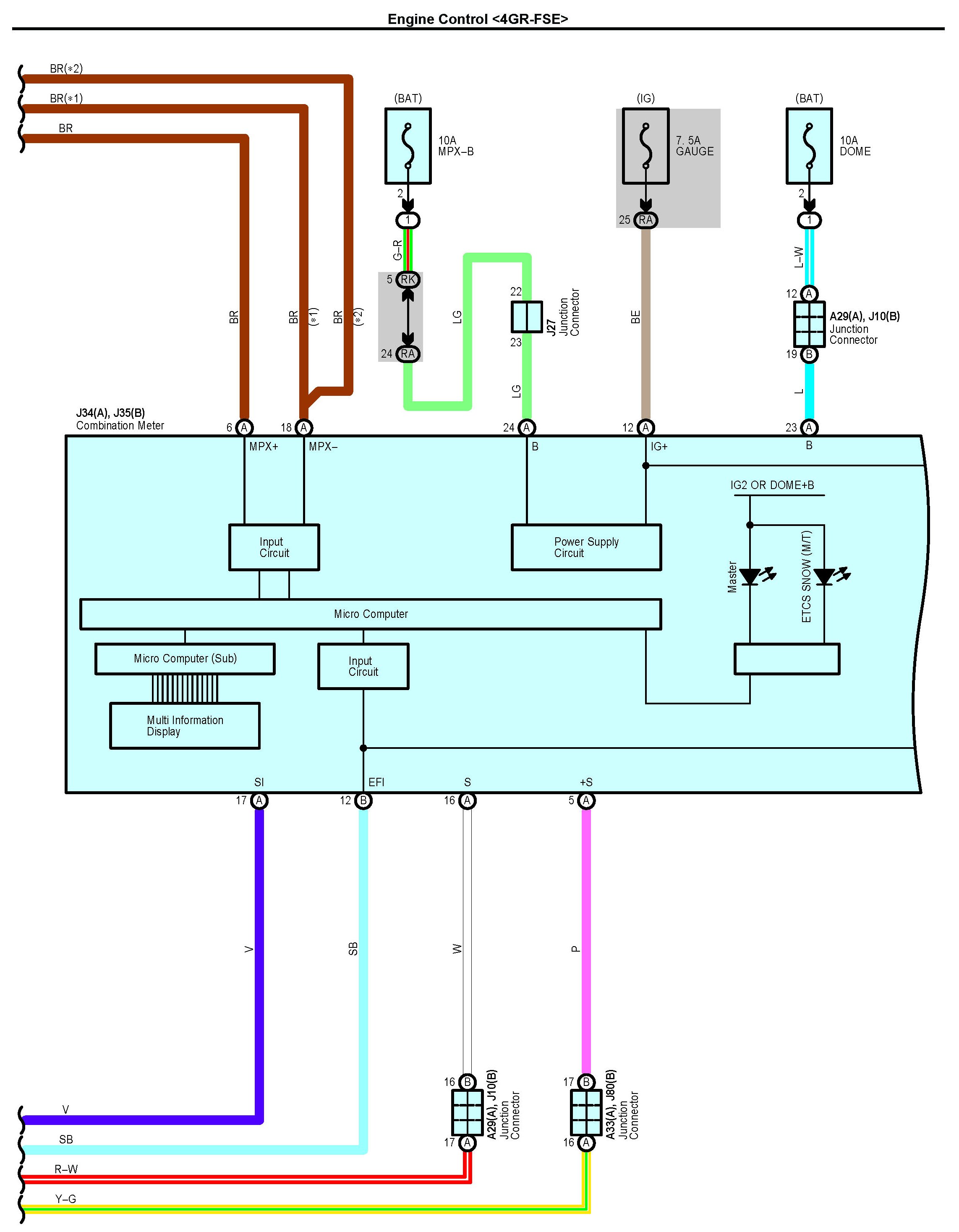

Engine Control Part 16:

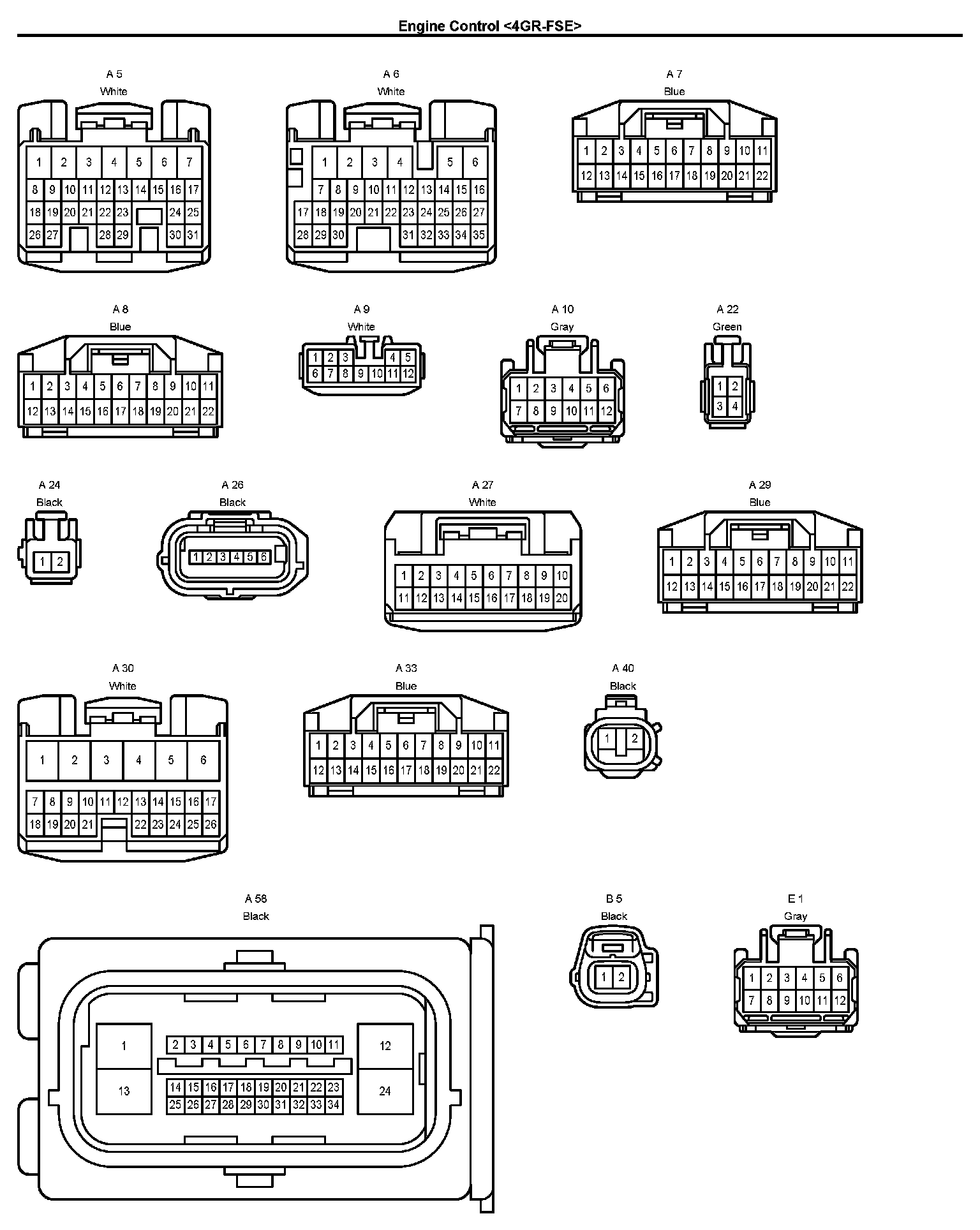

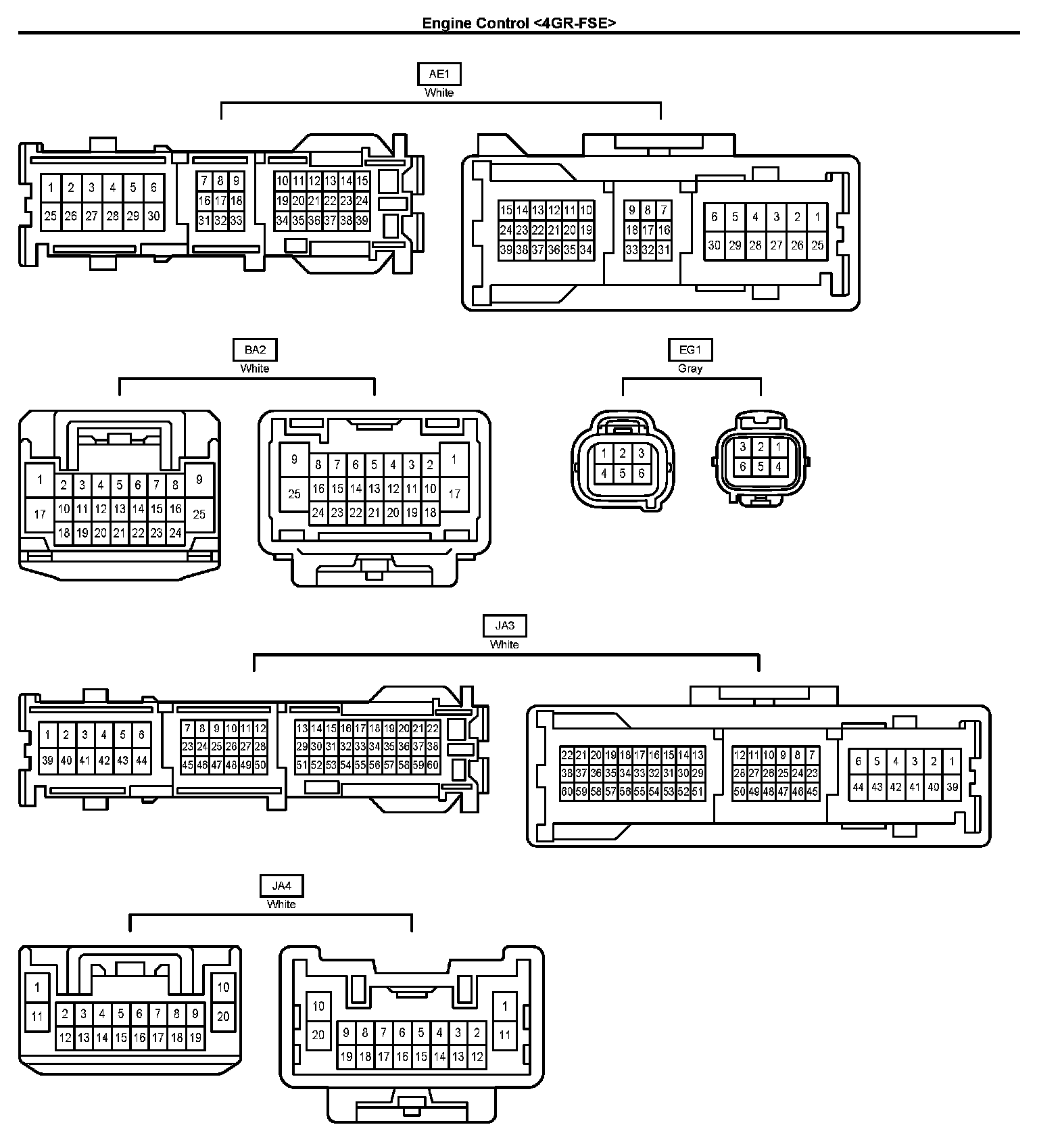

Connectors Part 1:

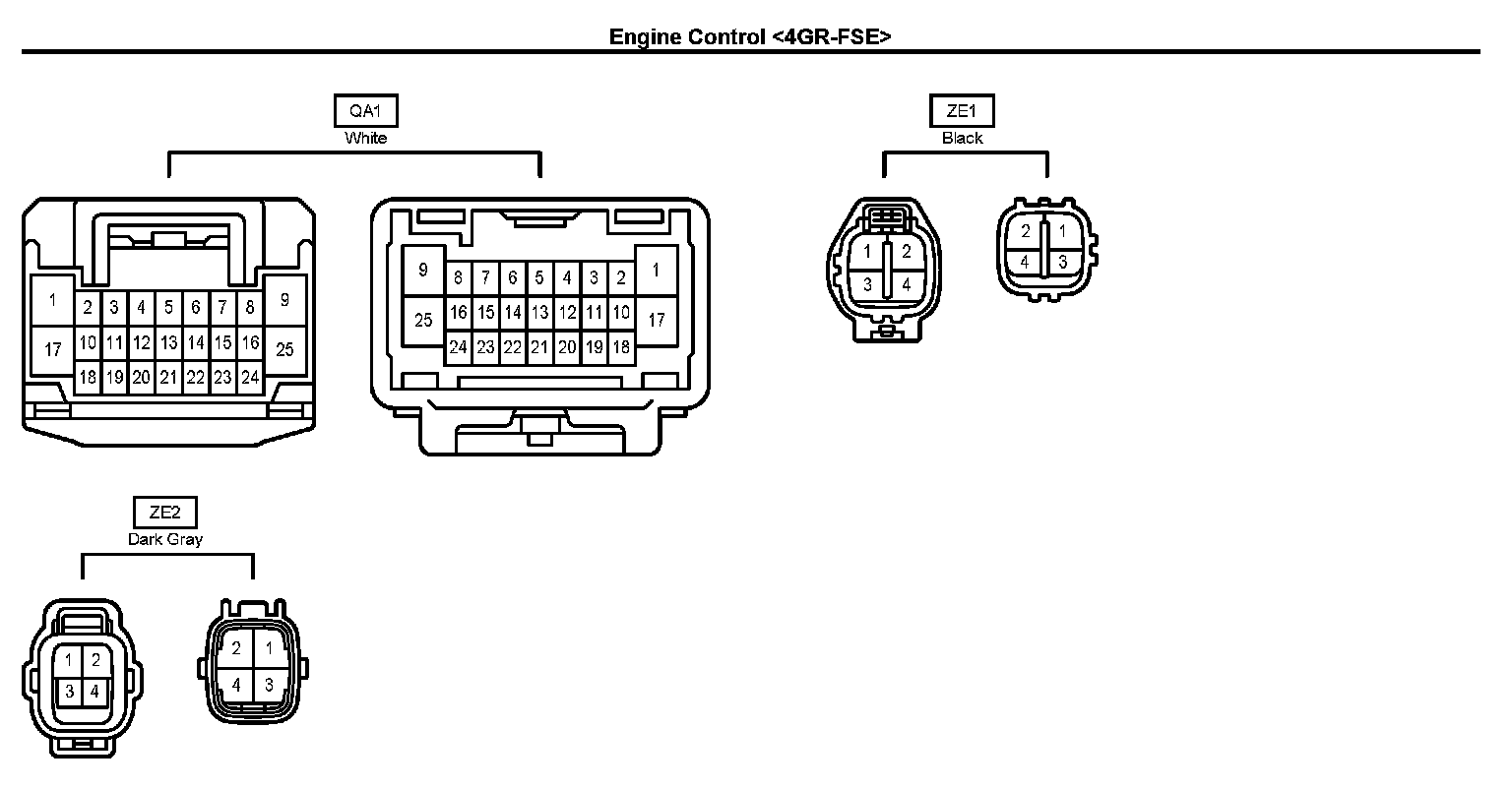

Connectors Part 2:

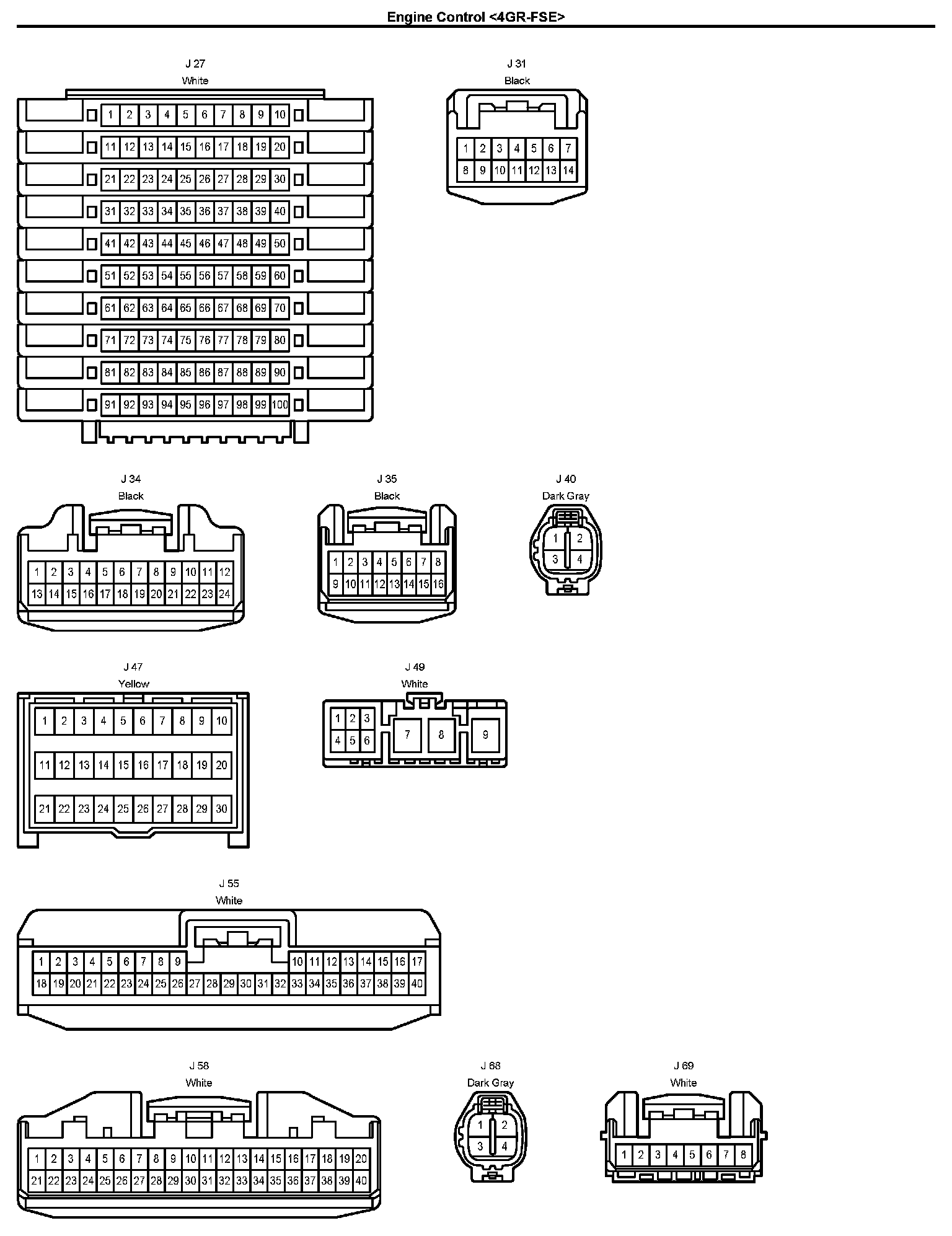

Connectors Part 3:

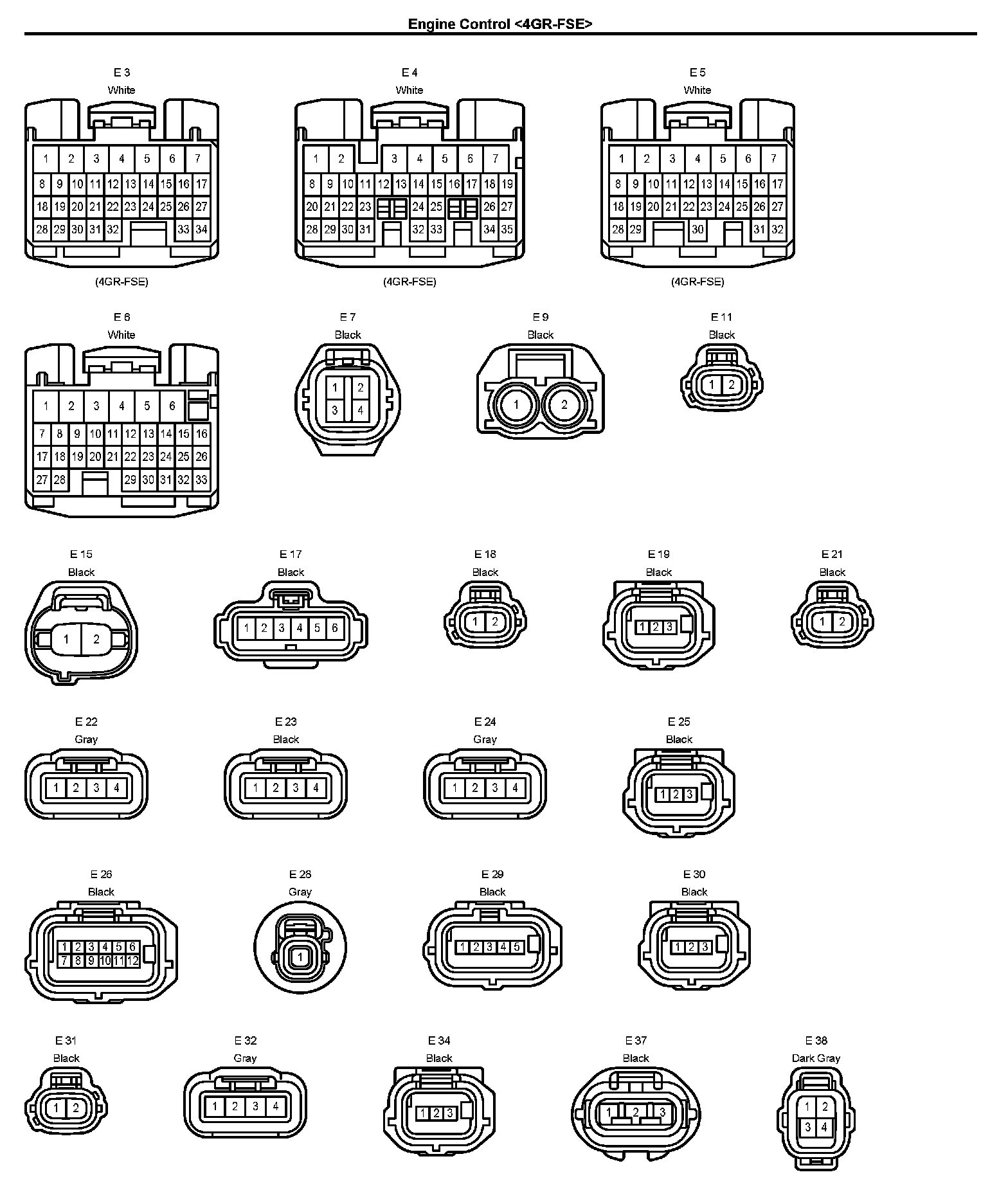

Connectors Part 4:

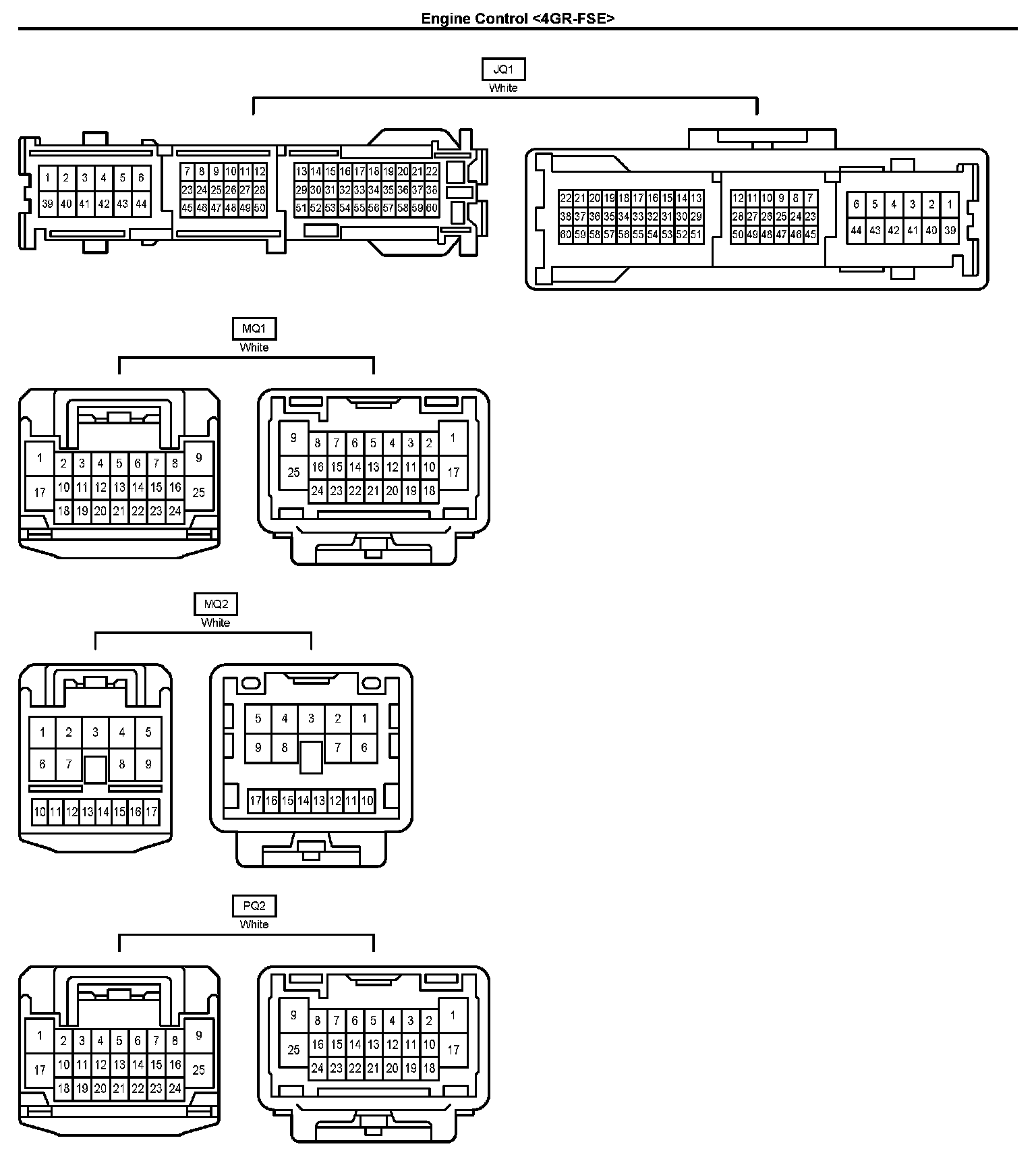

Connectors Part 5:

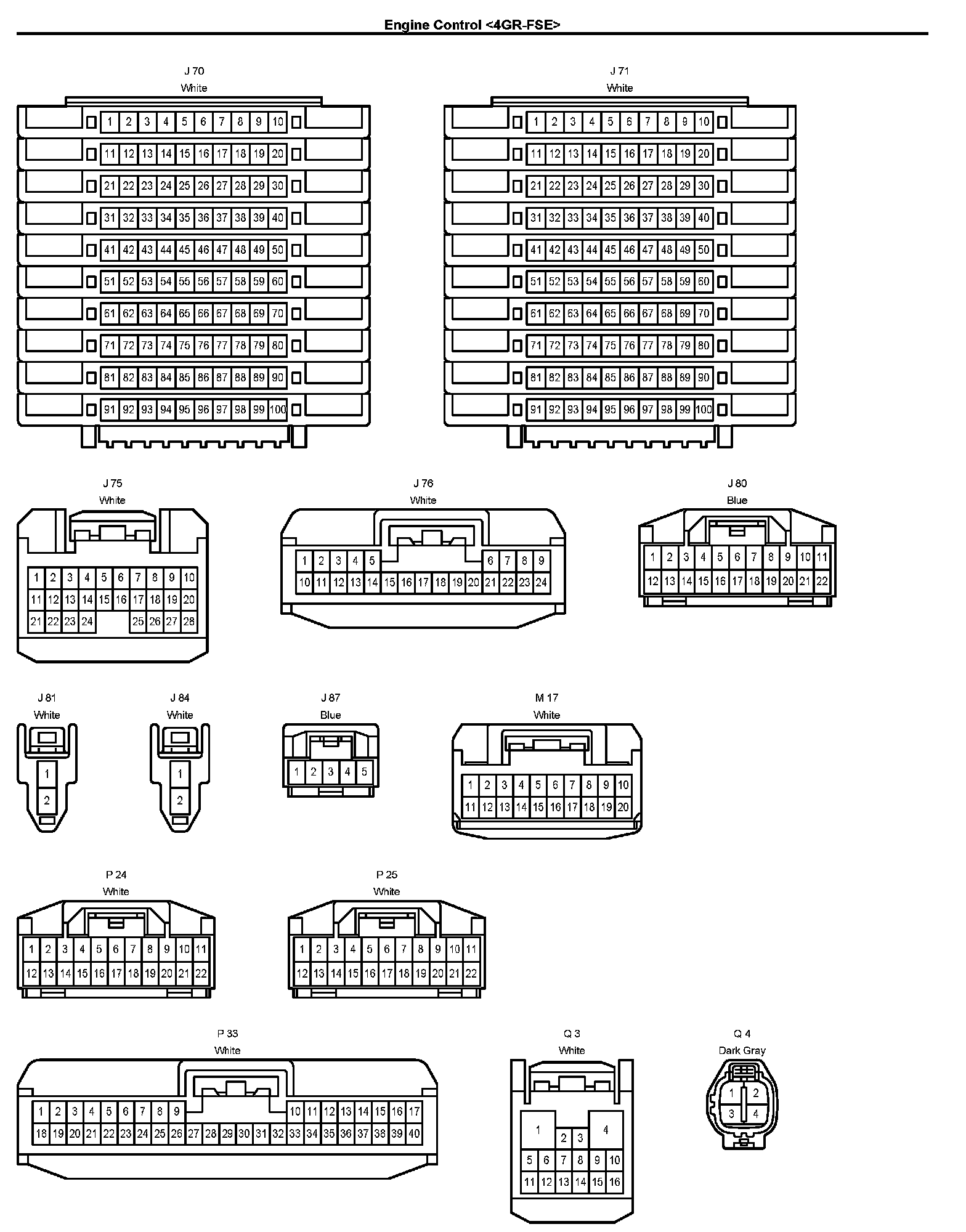

Connectors Part 6:

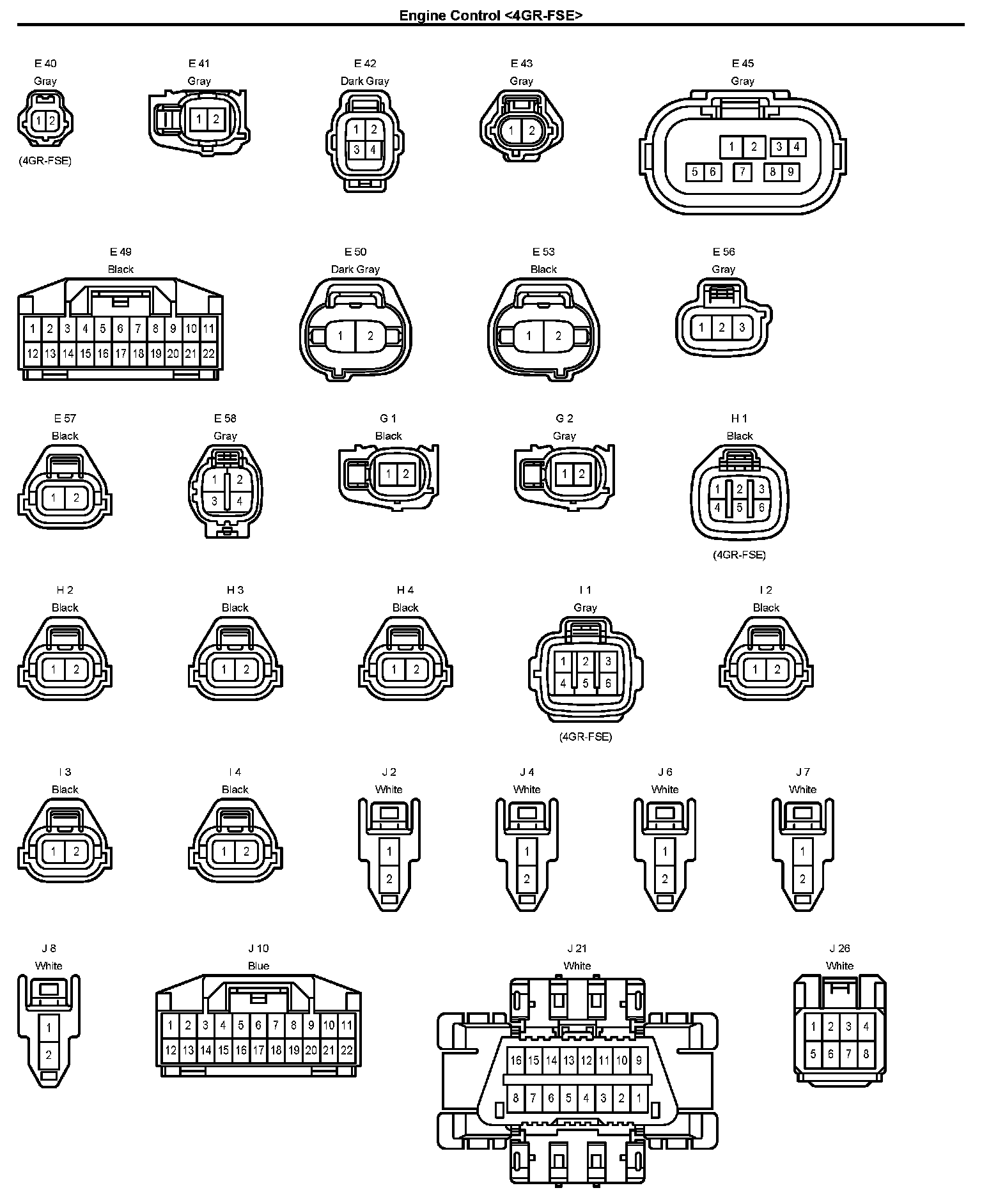

Connectors Part 7:

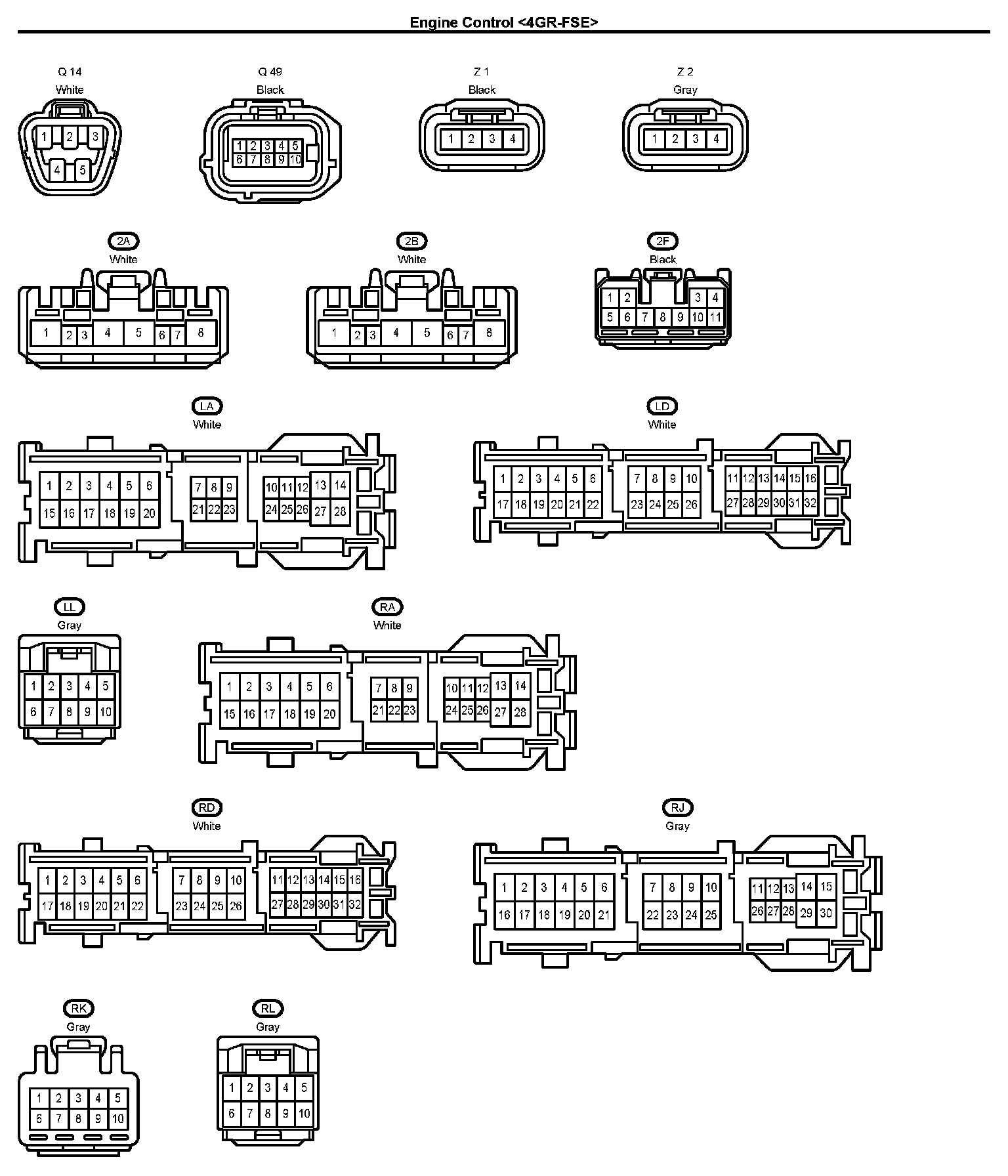

Connectors Part 8:

Connectors Part 9:

Next Diagram Engine Control Part 17

Previous Diagram Engine Control Part 15

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
