Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH

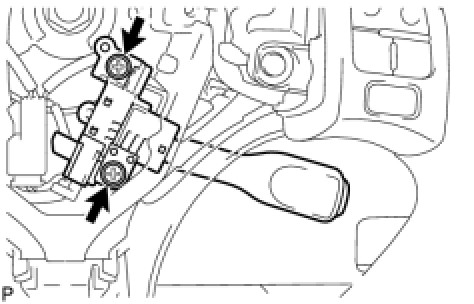

(a) Install the cruise control main switch with the 2 screws.
Torque: 1.7 to 3.0 Nm (17 to 31 kgf-cm, 15 to 27 in-lbf)
(b) Connect the connector.
2. INSTALL STEERING PAD Installation
3. INSTALL NO. 3 LOWER STEERING WHEEL COVER
4. INSTALL NO. 2 LOWER STEERING WHEEL COVER
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSPECT SRS WARNING LIGHT
