Speed Sensor: Components: Illustration

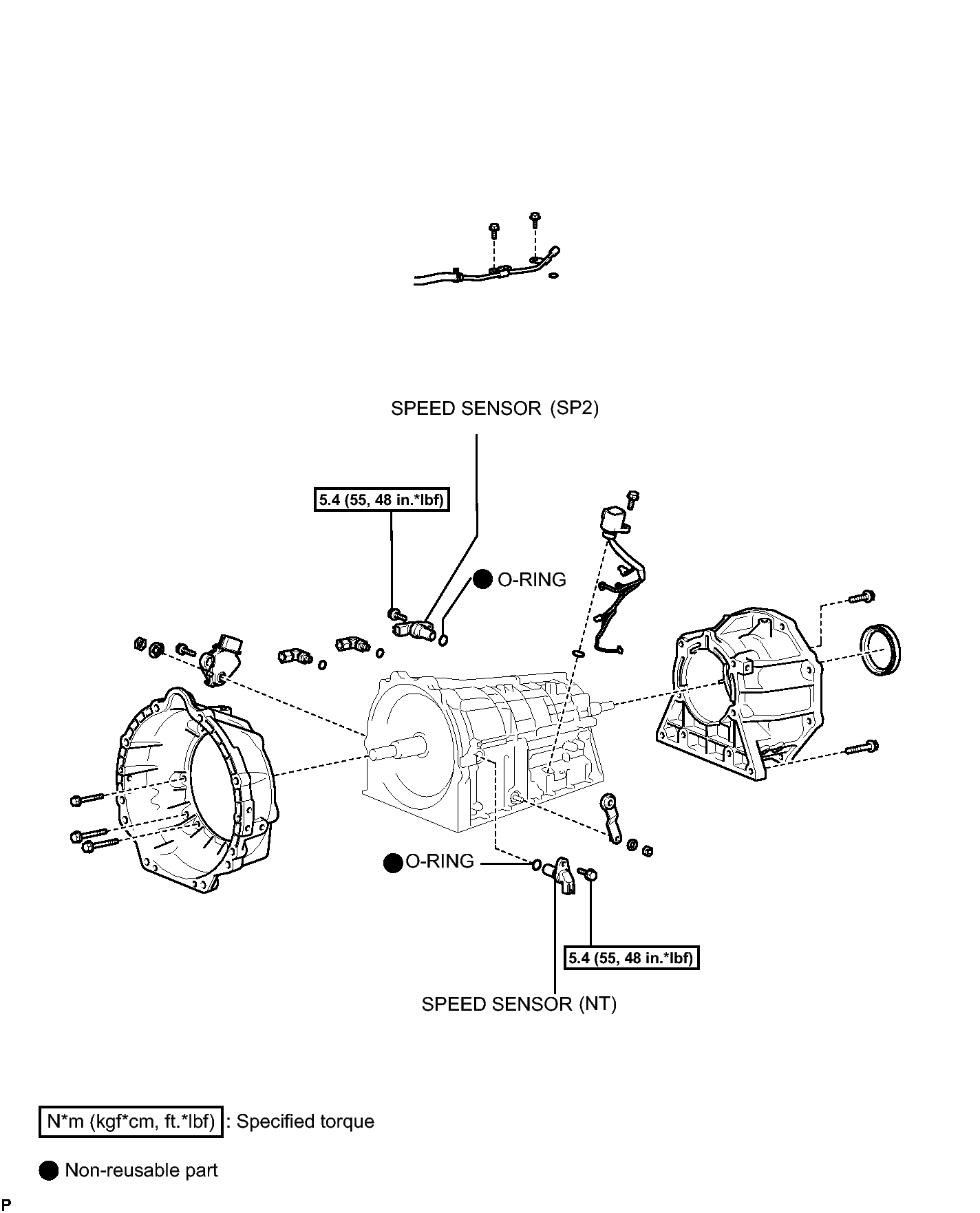

Fig 1: Identifying Speed Sensor Replacement Components With Torque Specifications
GTY111441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
