Power Outlet (115V): Notes

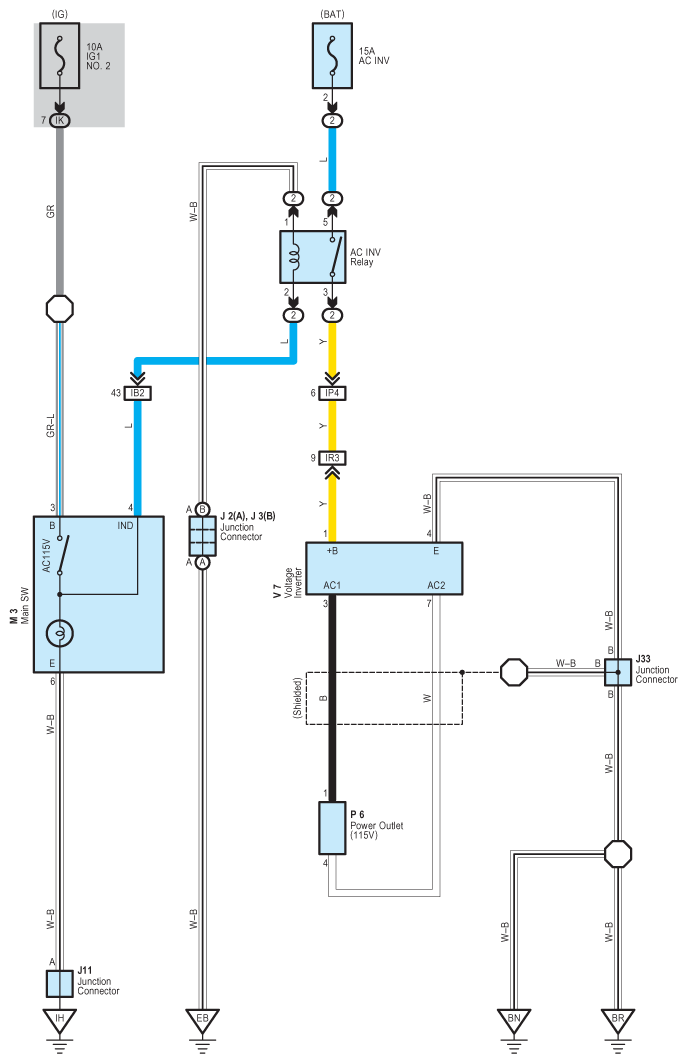

Fig 1: Power Outlet (115V) - Circuit Diagram
G07619913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
