System Diagram

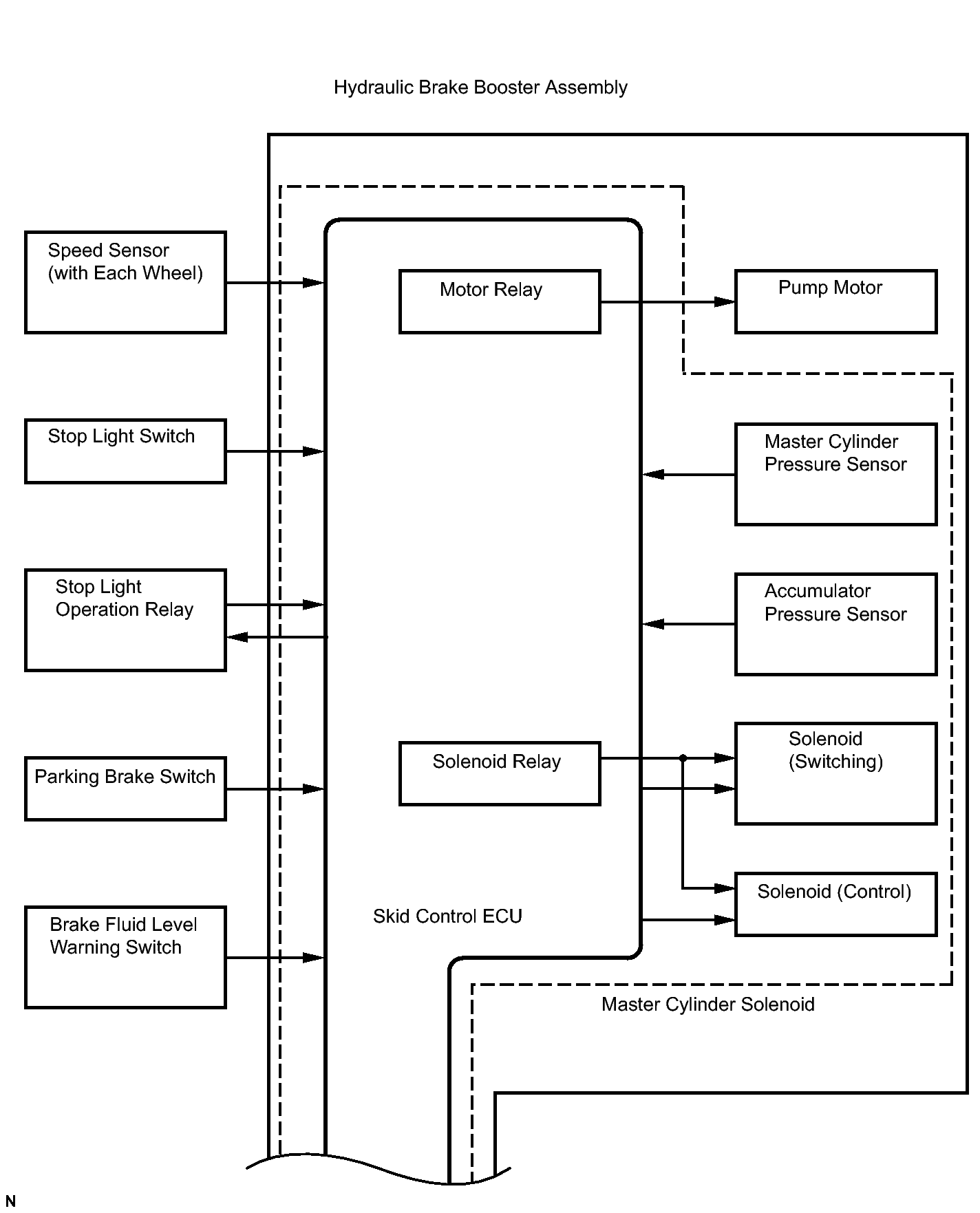

Fig 1: Identifying Vehicle Stability Control System Diagram (1 Of 2)
GTY112077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

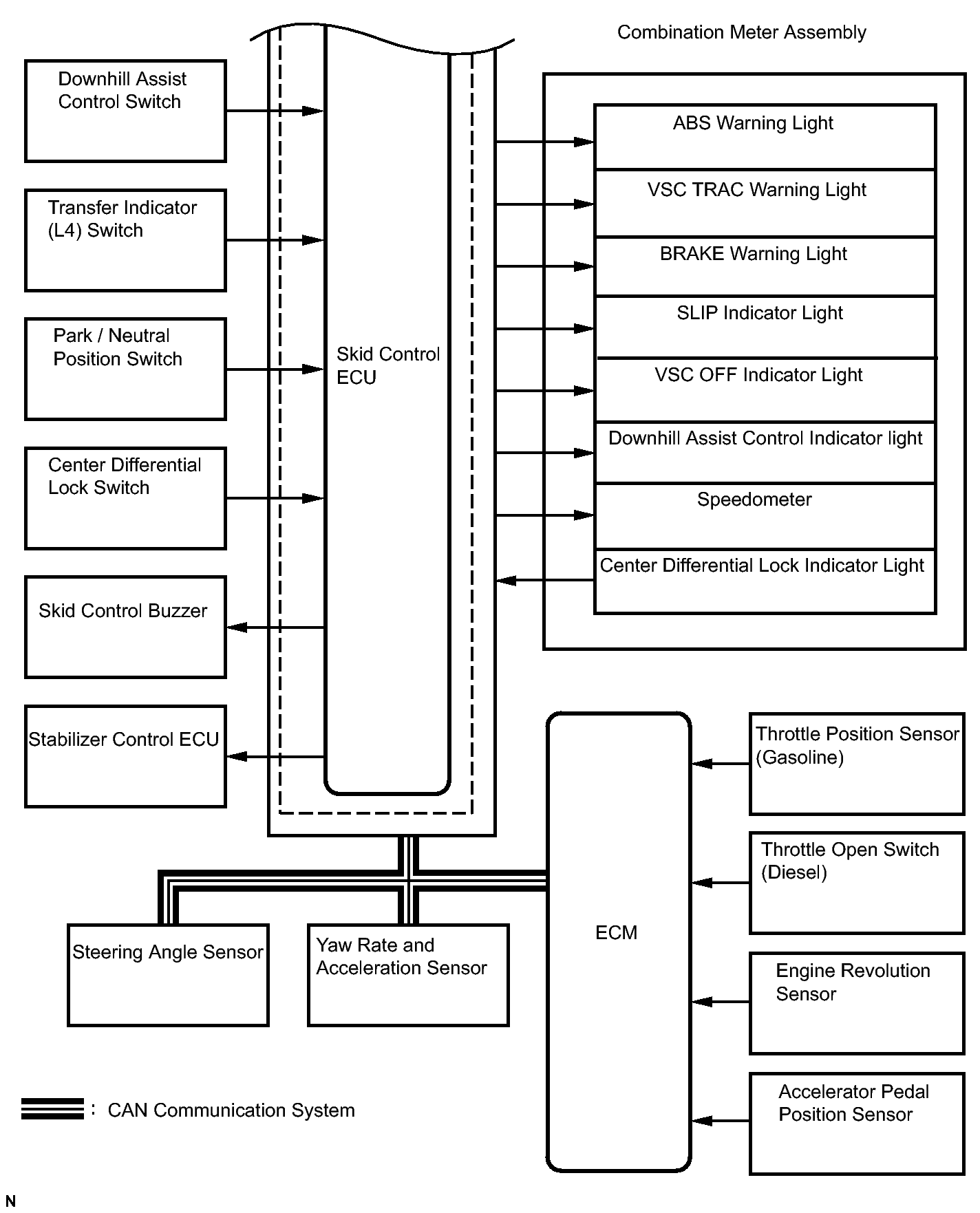

Fig 2: Identifying Vehicle Stability Control System Diagram (2 Of 2)
GTY110573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transmitting ECU (Transmitter) Receiving ECU Signals Communication Method
ECM Skid control ECU Throttle position signal CAN communication system
ECM Skid control ECU Engine revolution signal CAN communication system
ECM Skid control ECU Accelerator pedal position signal CAN communication system
Skid control ECU ECM Yaw rate and acceleration signal CAN communication system
Skid control ECU ECM Steering angle signal CAN communication system
Skid control ECU ECM Engine torque request signal CAN communication system
