Front Passenger Side Power Window Auto Up / Down Function Does Not Operate With Front Passenger Side Power Window Switch: Wiring Diagram

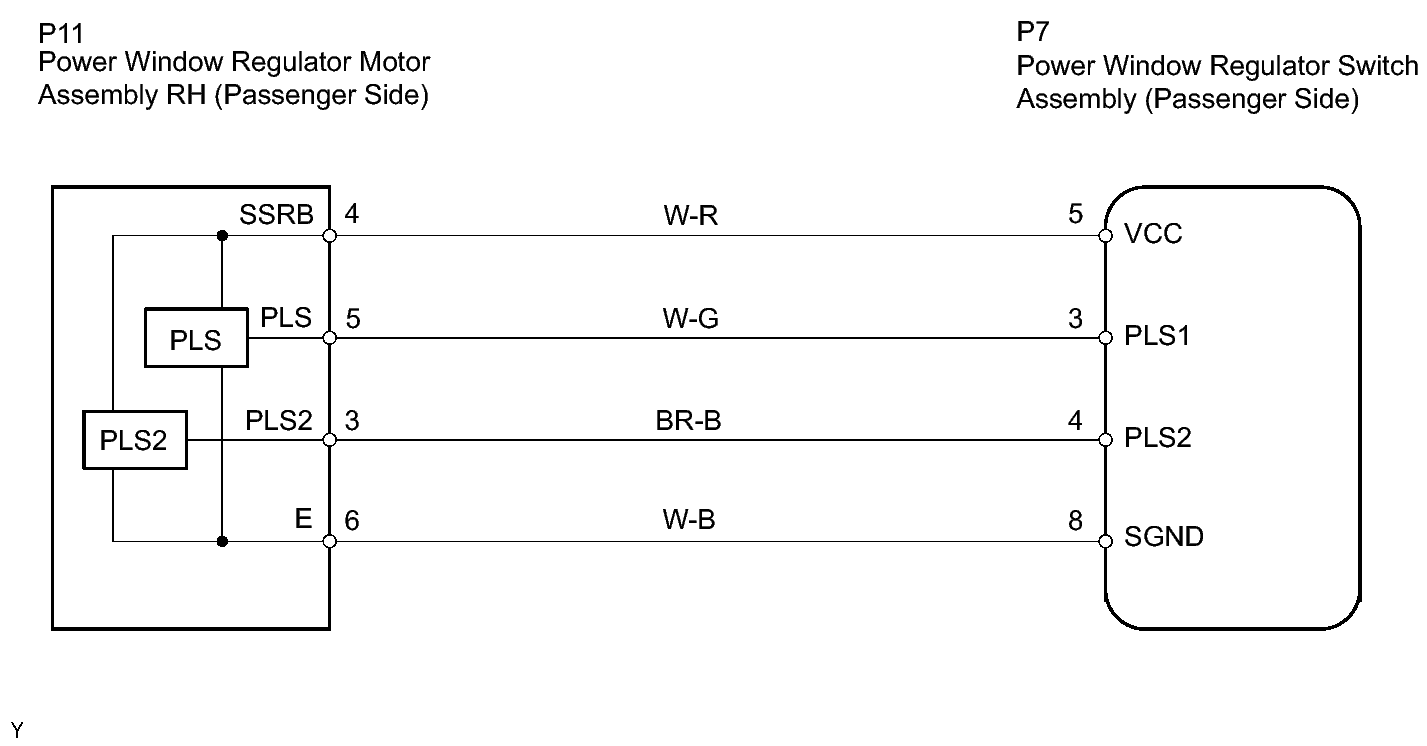

Fig 1: Identifying Power Window Regulator Motor Wiring Diagram
GTY120584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
