A760E Automatic Transmission System

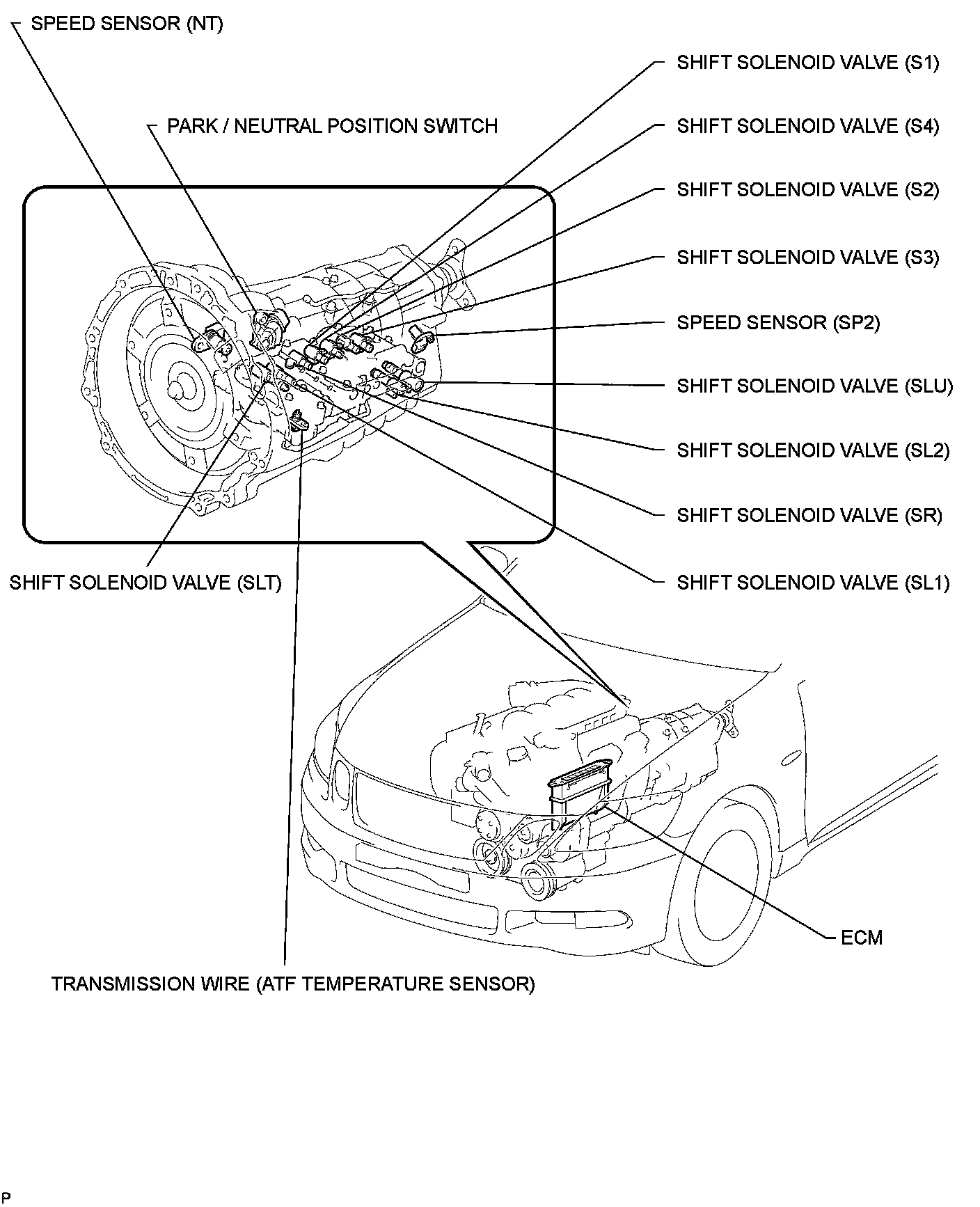

A760E AUTOMATIC TRANSMISSION: ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
