Problem Symptoms Table








CAN COMMUNICATION SYSTEM:

PROBLEM SYMPTOMS TABLE

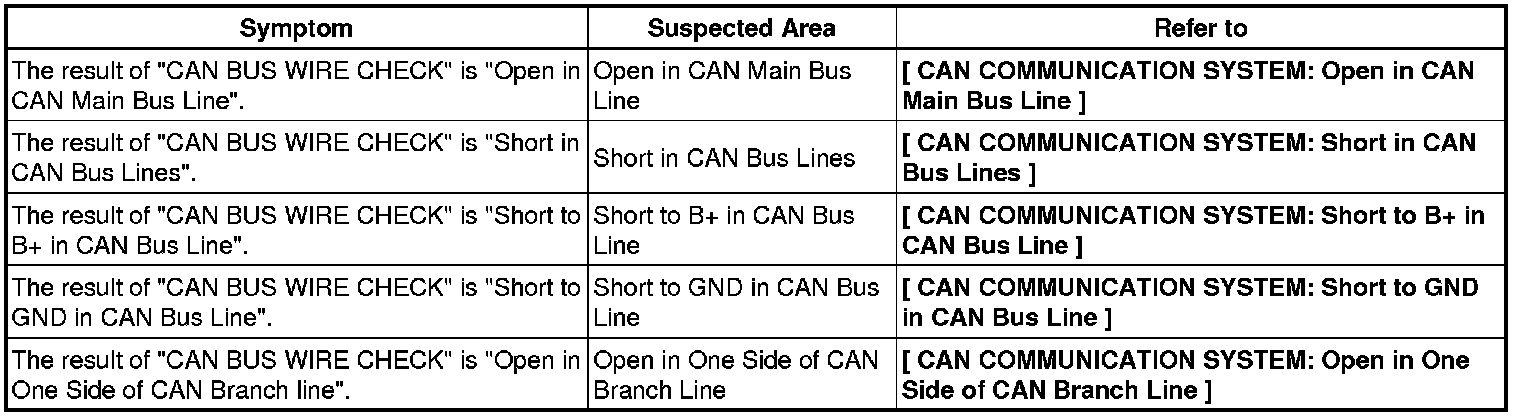

RESULT LIST OF CAN BUS WIRE CHECK:

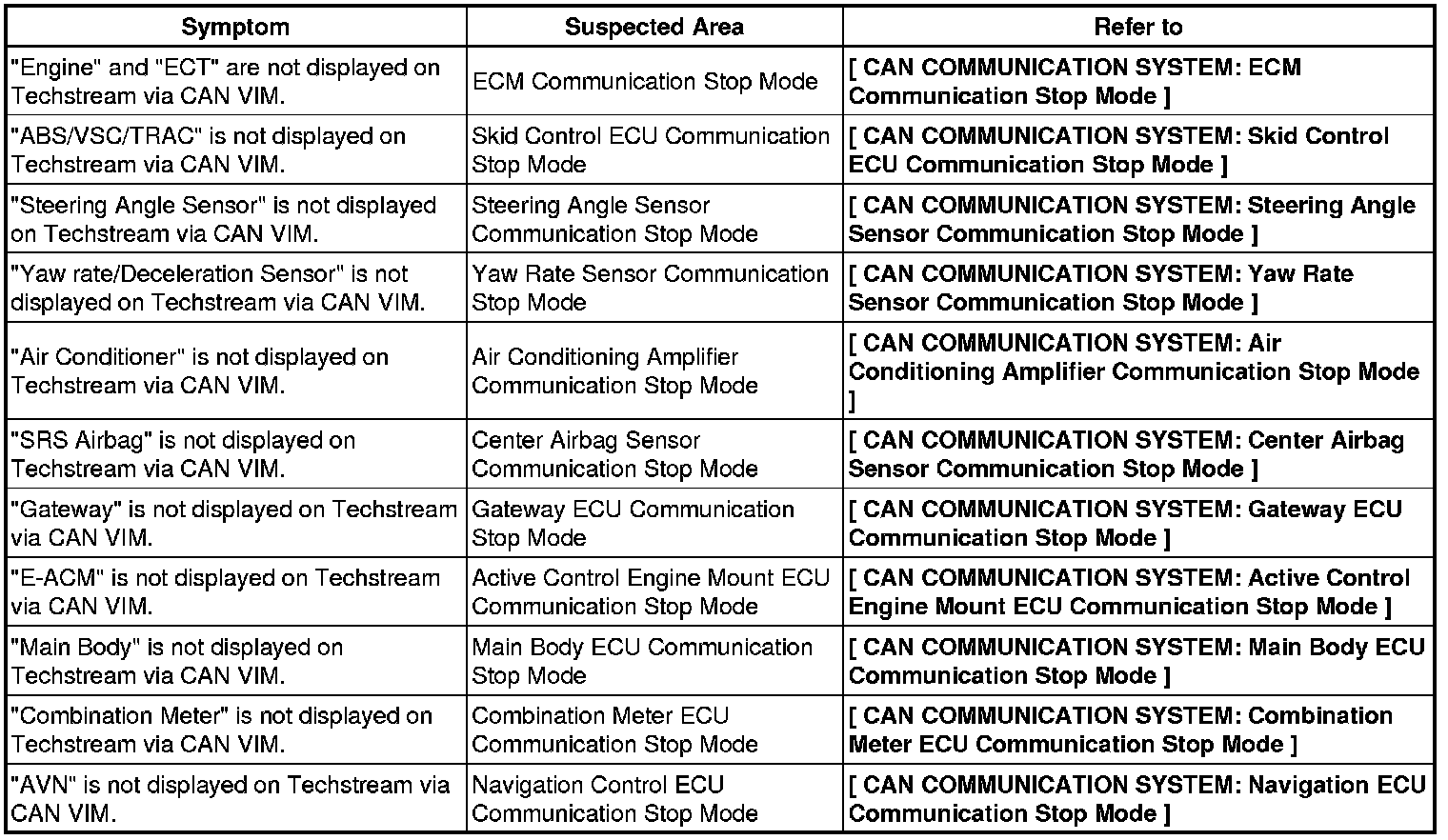

COMMUNICATION STOP MODE TABLE:
