Removal

2GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:

REMOVAL

1. REMOVE GENERATOR ASSEMBLY
HINT: Removal

2. DISCONNECT COOLER COMPRESSOR ASSEMBLY
HINT: Removal

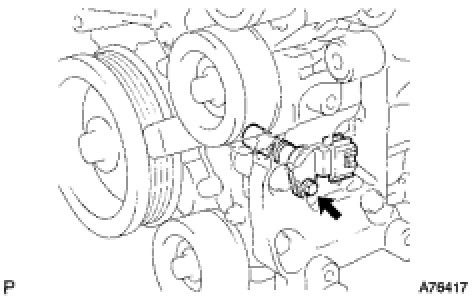

3. REMOVE CRANKSHAFT POSITION SENSOR





(a) Disconnect the crankshaft position sensor connector.
(b) Remove the bolt and crankshaft position sensor.
