DTC C1249/49 Open in Stop Light Switch Circuit: Wiring Diagram

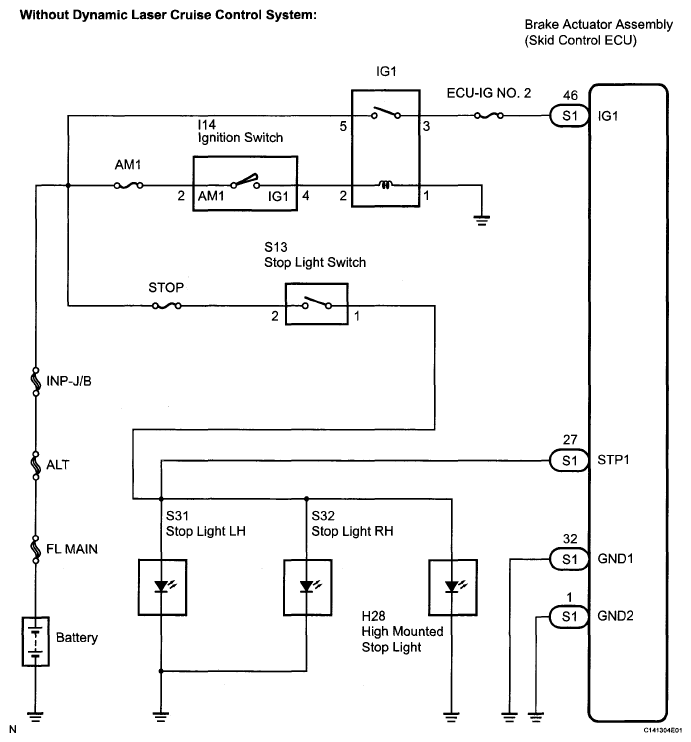

Fig 1: Brake Actuator Assembly - Wiring Diagram (Without Dynamic Laser Cruise Control System)
G05841901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

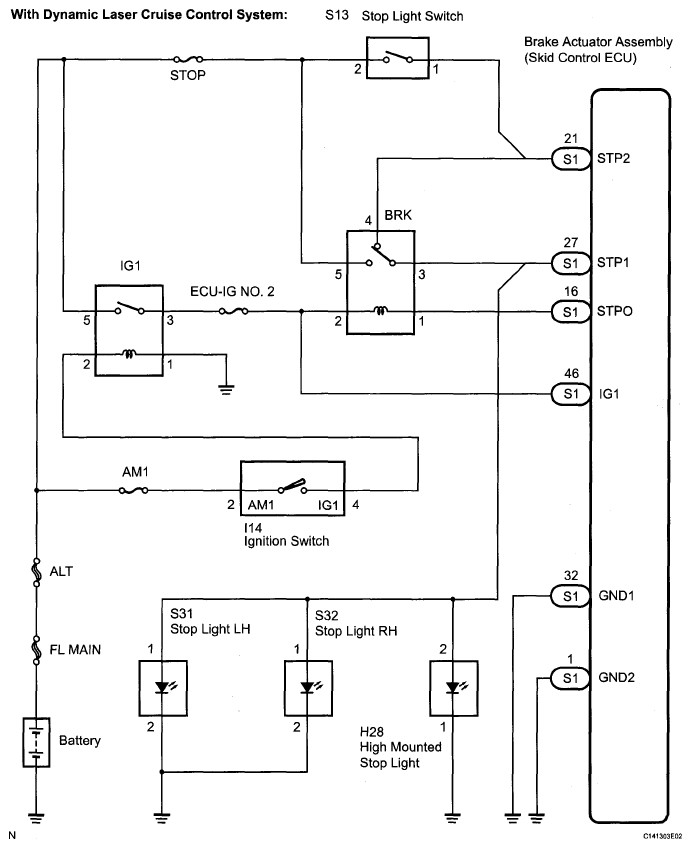

Fig 2: Brake Actuator Assembly - Wiring Diagram (With Dynamic Laser Cruise Control System)
G05841902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
