DAMPING FORCE CONTROL ACTUATOR (for Front Side): Inspection

  1. INSPECT FRONT SHOCK ABSORBER CONTROL VALVE ASSEMBLY (DAMPING FORCE CONTROL ACTUATOR)
    1. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

    for RH

    STANDARD RESISTANCE

    Tester Connection Condition Specified Condition
    1 (FAR+) - 2 (E FR) Always 12.0 to 13.6 Ω
    3 (FBR-) - 2 (E FR)
    4 (FAR-) - 2 (E FR)
    5 (FBR+) - 2 (E FR)

    for LH

    STANDARD RESISTANCE

    Tester Connection Condition Specified Condition
    1 (FAL+) - 2 (E FL) Always 12.0 to 13.6 Ω
    3 (FBL-) - 2 (E FL)
    4 (FAL-) - 2 (E FL)
    5 (FBL+) - 2 (E FL)

    If the result is not as specified, replace the shock absorber control valve assembly.

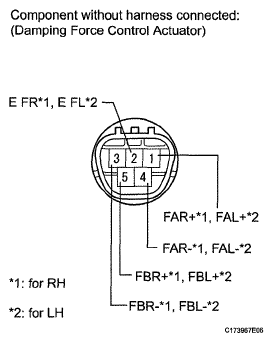

    Fig 1: Identifying Damping Force Control Actuator Connector Terminals
    G05761442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT FRONT SUSPENSION CONTROL VALVE ASSEMBLY (FRONT SPRING RATE SWITCHING VALVE)
    1. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

    for RH

    STANDARD RESISTANCE

    Tester Connection Condition Specified Condition
    1 (CRFR) - 2 (SLB) 20°C (68°F) 4.58 to 5.02 Ω

    for LH

    STANDARD RESISTANCE

    Tester Connection Condition Specified Condition
    1 (CRFL) - 2 (SLB) 20°C (68°F) 4.58 to 5.02 Ω
    Fig 2: Identifying Front Spring Rate Switching Valve Connector Terminals
    G05761443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the front suspension control valve assembly.
