System Diagram

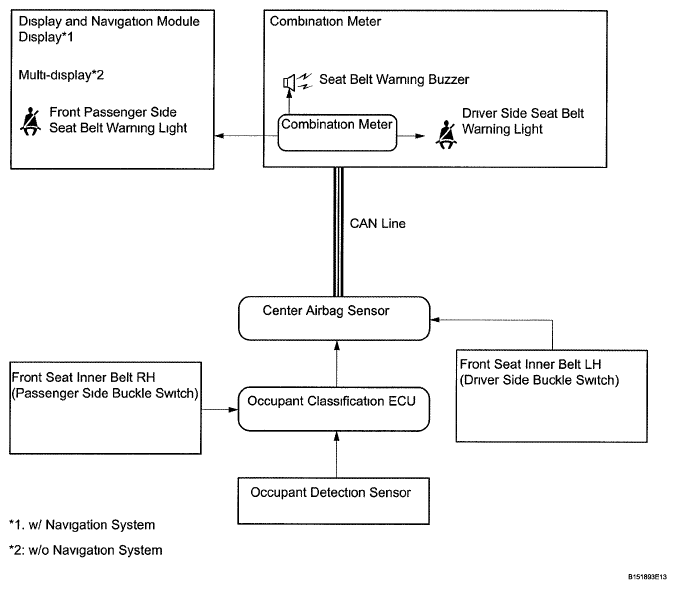

Fig 1: Seat Belt Warning System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table
COMMUNICATION REFERENCE
Sender
Receiver
Signal
Line
Center Airbag Sensor
Combination Meter
Front seat inner belt switch signal (for driver side)
Front seat inner belt switch signal (for passenger side)
Occupant detection signal
CAN
