Engine Control System - SFI System Precautions, Parts Location, Diagnostic And Troubleshooting Introduction, Diagnostic Trouble Code Chart
>>
SFI System
>>
Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Parts Location

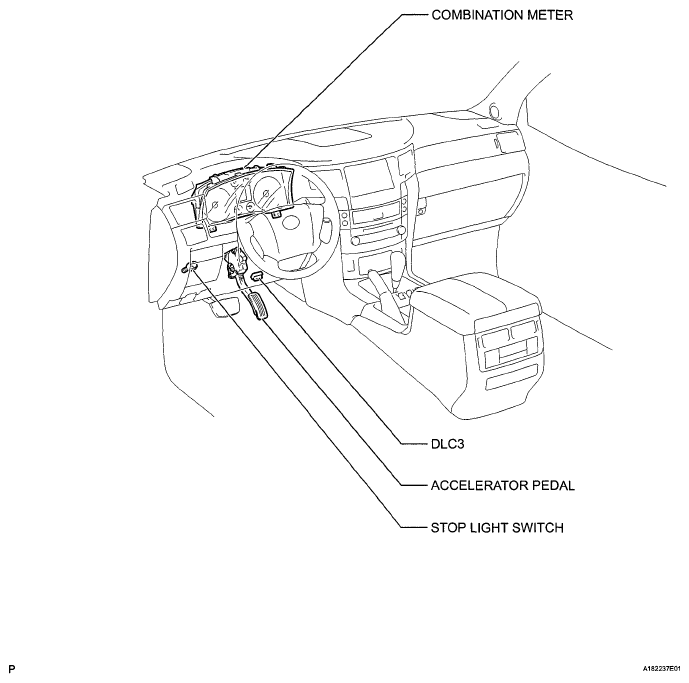

Fig 1: Identifying SFI System Components Location (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

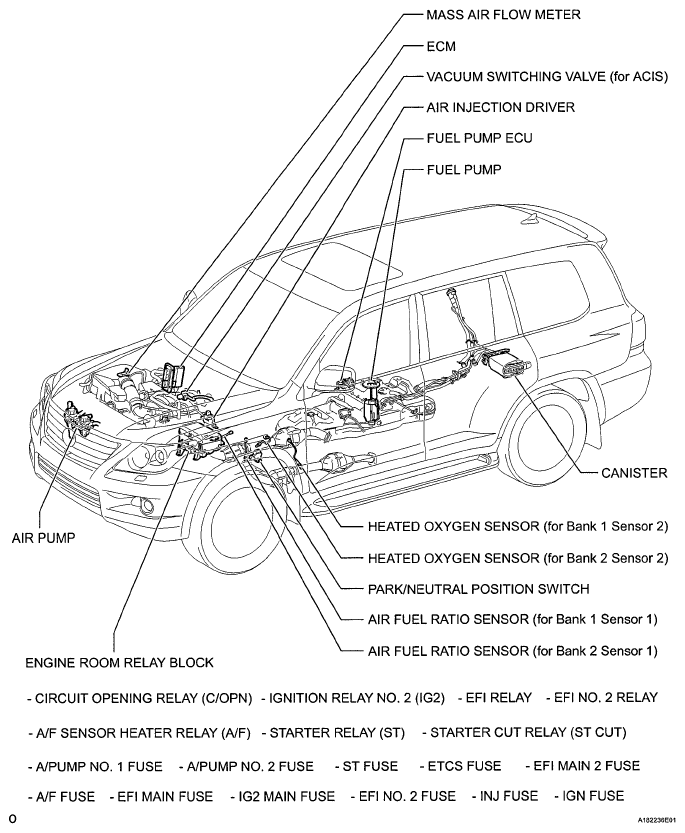

Fig 2: Identifying SFI System Components Location (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

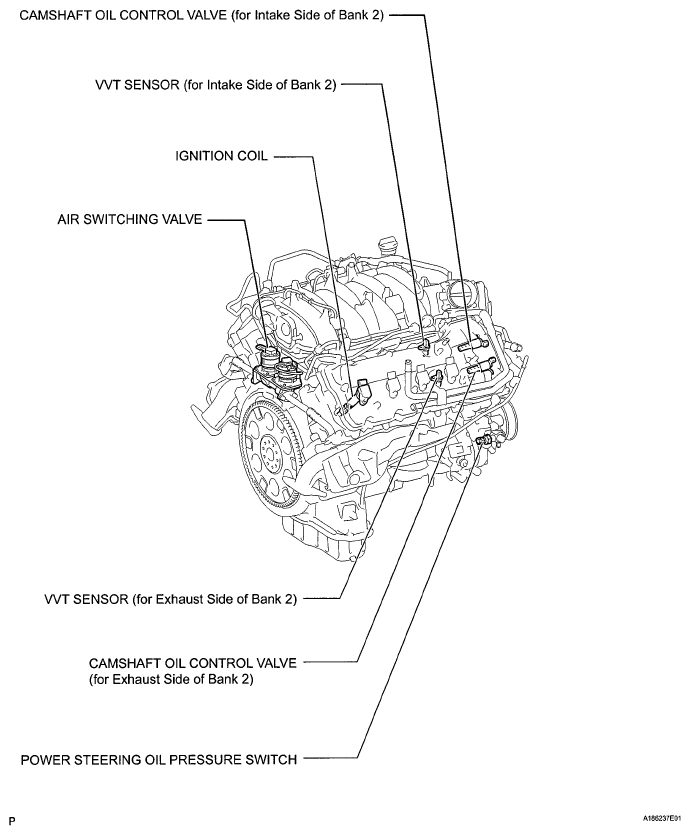

Fig 3: Identifying SFI System Components Location (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying SFI System Components Location (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying SFI System Components Location (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
