Fuel Tank: Components

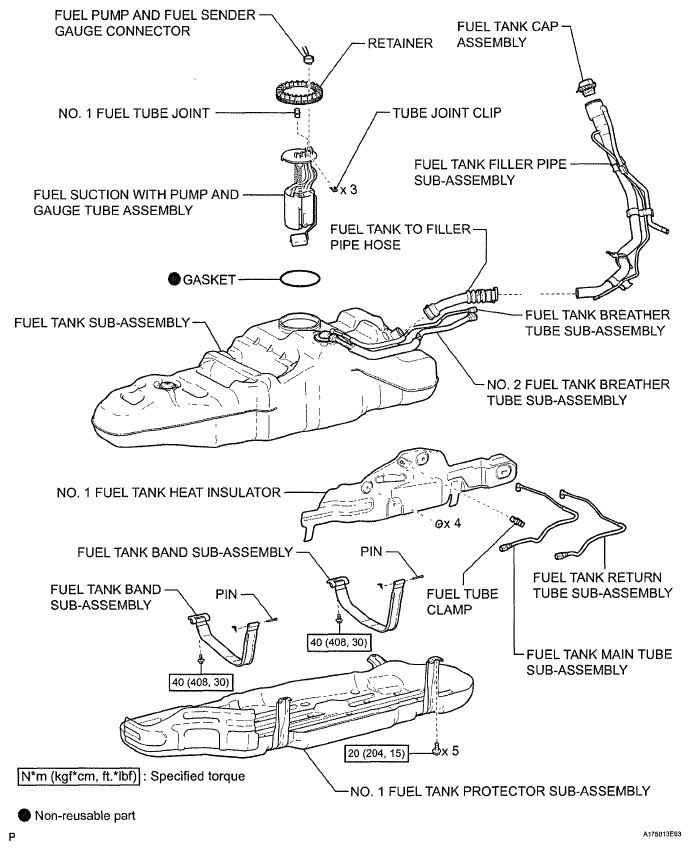

Fig 1: Identifying Fuel Tank Components

Fig 2: Fuel Tank Replacement Components With Torque Specifications
