Rear Power Outlet Socket: Components

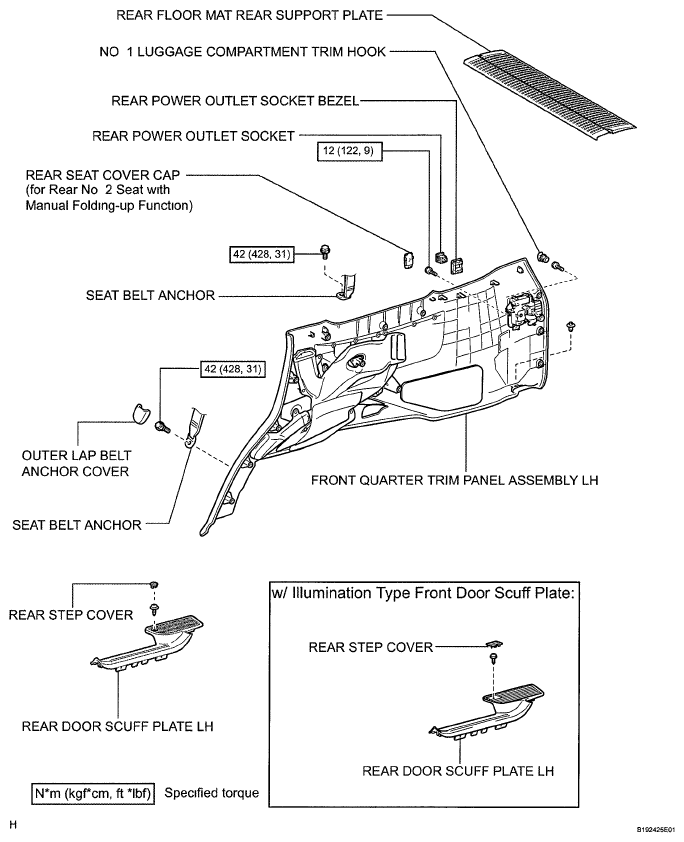

Fig 1: Rear Power Outlet Socket Replacement Components With Torque Specifications
G05766963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
