LEXUS Link System (Mayday System): Notes

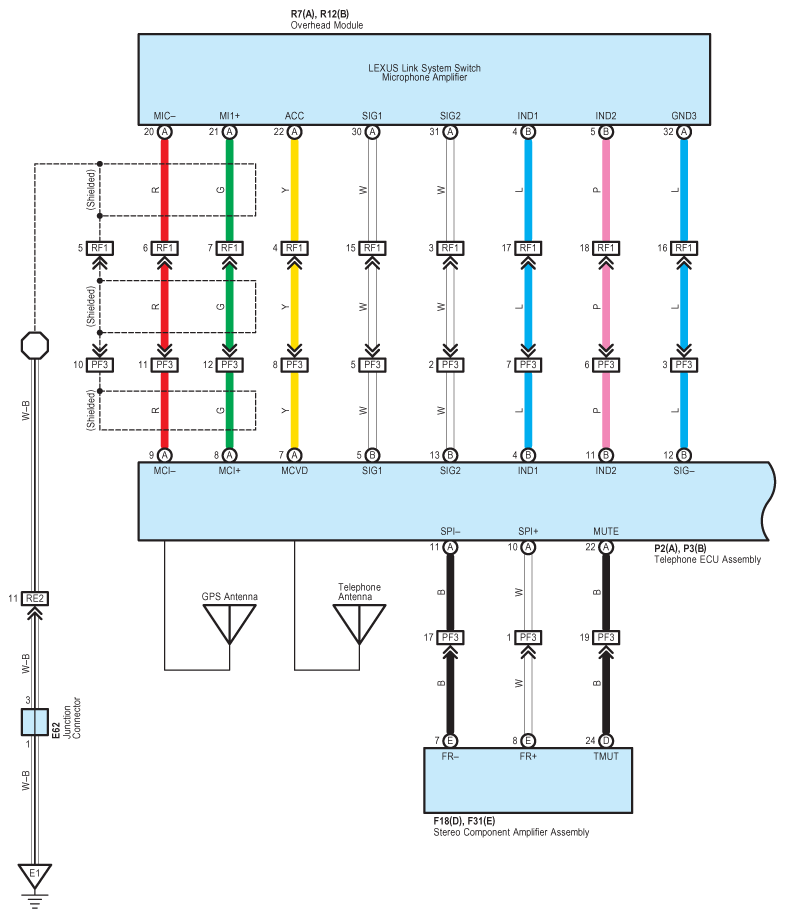

Fig 1: Lexus Link System (Mayday System) - Circuit Diagram (1 Of 4)
G07597011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

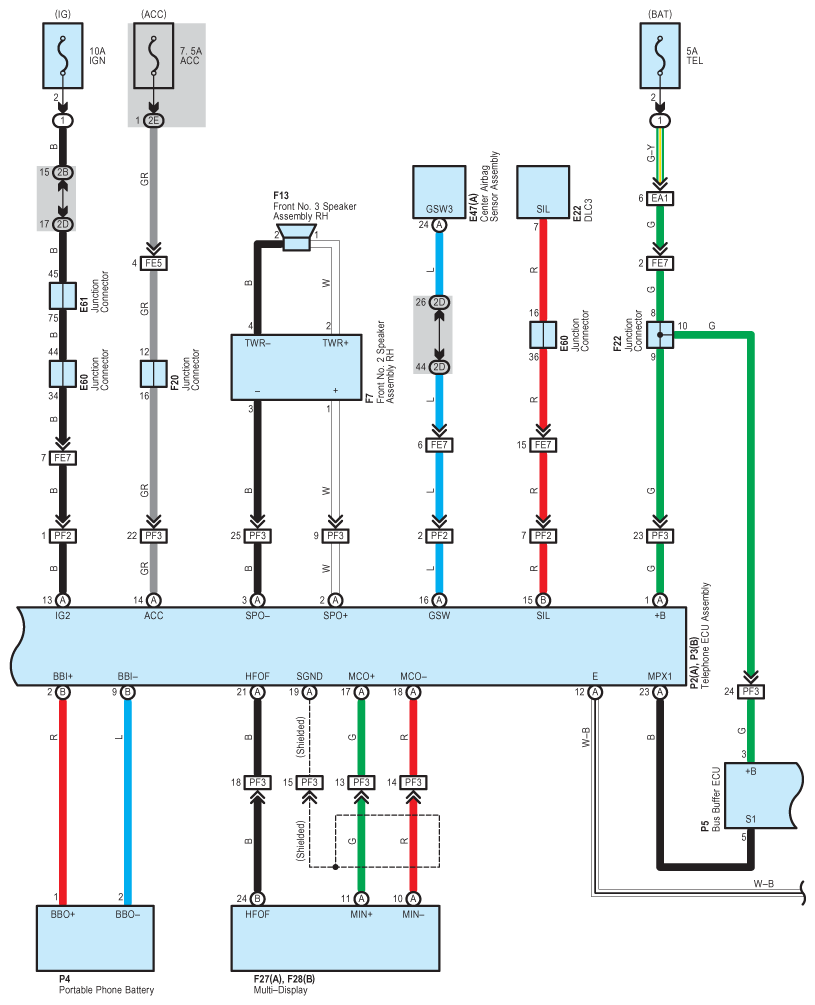

Fig 2: Lexus Link System (Mayday System) - Circuit Diagram (2 Of 4)
G07597012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

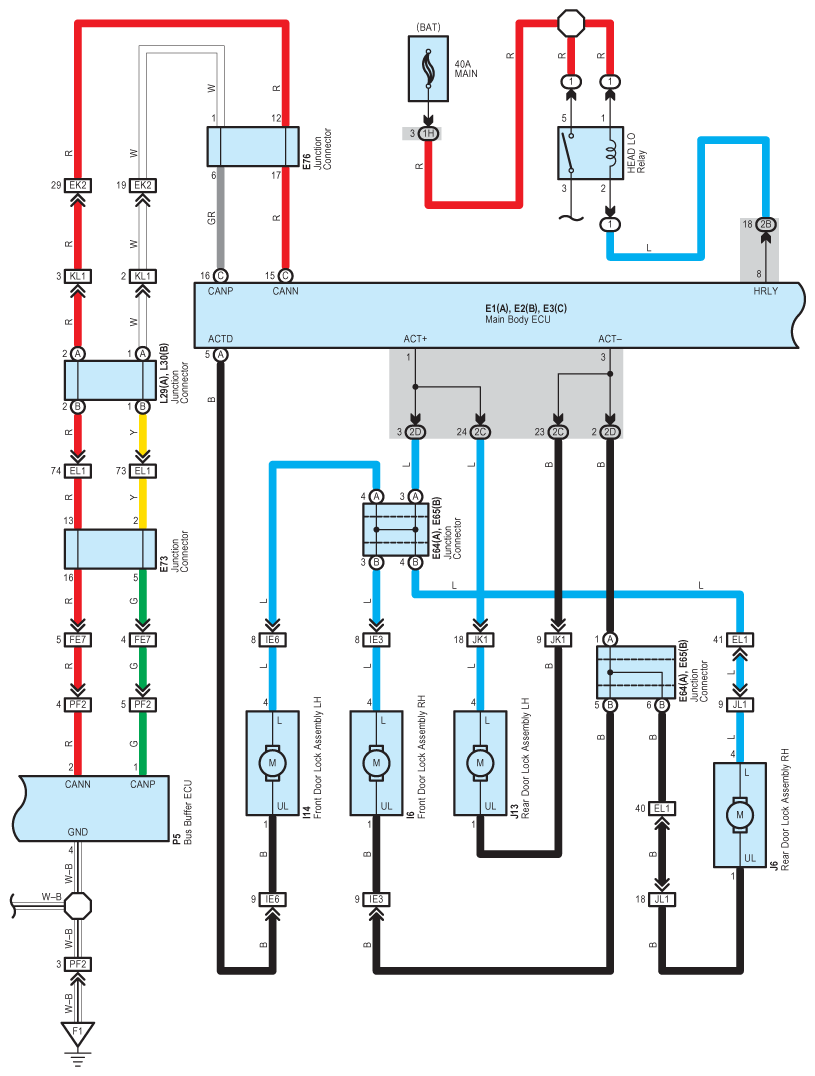

Fig 3: Lexus Link System (Mayday System) - Circuit Diagram (3 Of 4)
G07597013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

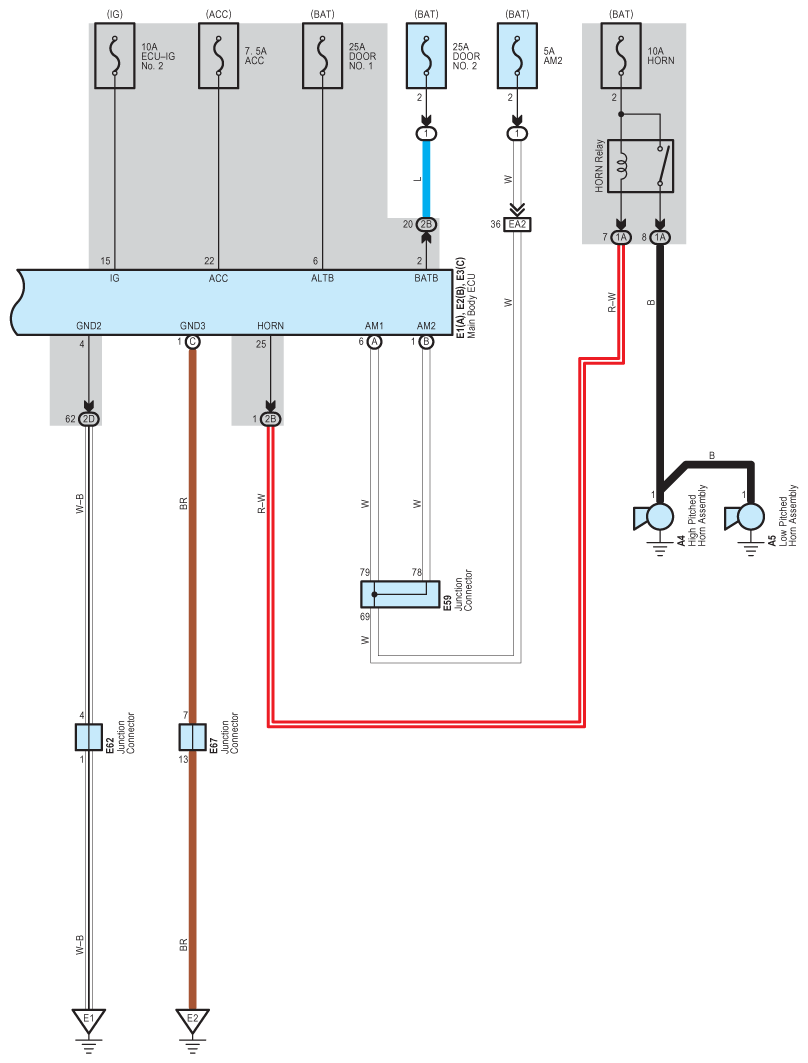

Fig 4: Lexus Link System (Mayday System) - Circuit Diagram (4 Of 4)
G07597014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
