DTC B2312: Power Window Switch Malfunction: Wiring Diagram

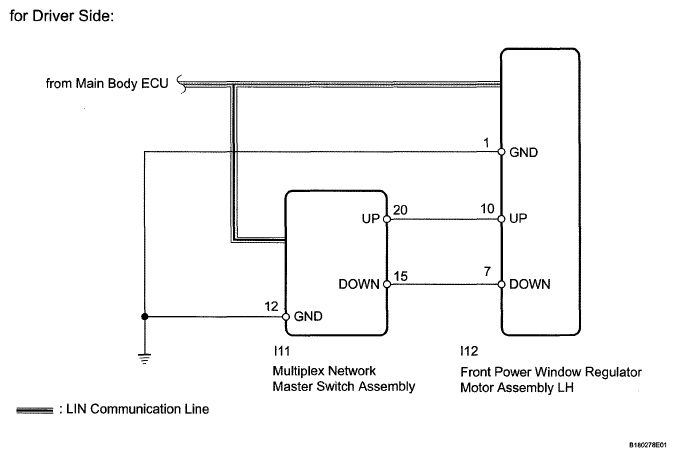

Fig 1: Multiplex Network Master Switch Assembly - Wiring Diagram (For Driver Side)
G05636299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

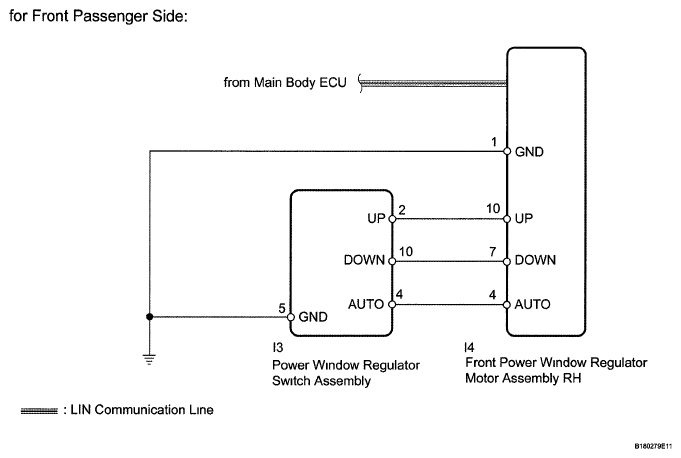

Fig 2: Power Window Regulator Switch Assembly - Wiring Diagram (For Front Passenger Side)
G05767417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

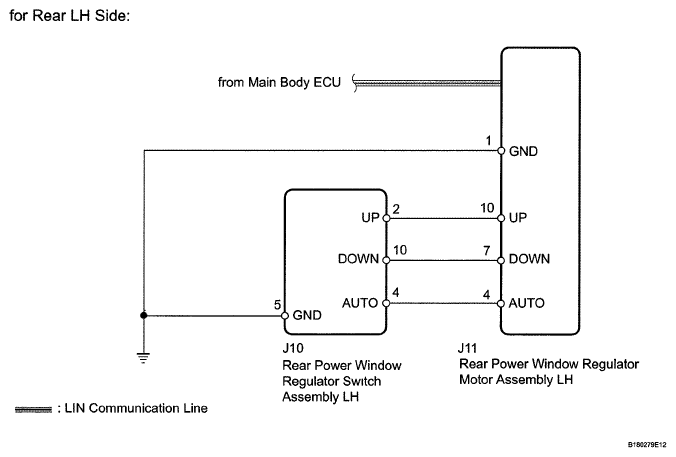

Fig 3: Rear Power Window Regulator Switch Assembly LH - Wiring Diagram (For Rear LH Side)
G05767418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Rear Power Window Regulator Switch Assembly RH - Wiring Diagram (For Rear RH Side)
G05767419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
