Stereo Component Amplifier: Components

Fig 1: Identifying Stereo Component Amplifier Replacement Components With Torque Specifications (1 Of 7)
G05632284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Stereo Component Amplifier Replacement Components With Torque Specifications (2 Of 7)
G05636801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Stereo Component Amplifier Replacement Components (3 Of 7)
G05763064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Stereo Component Amplifier Replacement Components (4 Of 7)
G05763065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying Stereo Component Amplifier Replacement Components (5 Of 7)
G05763066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

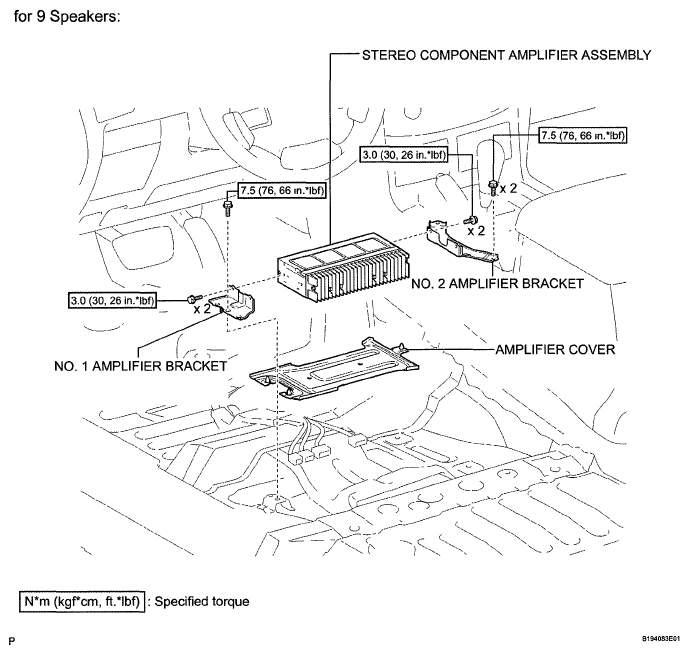

Fig 6: Identifying Stereo Component Amplifier Replacement Components With Torque Specifications (6 Of 7)
G05763067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

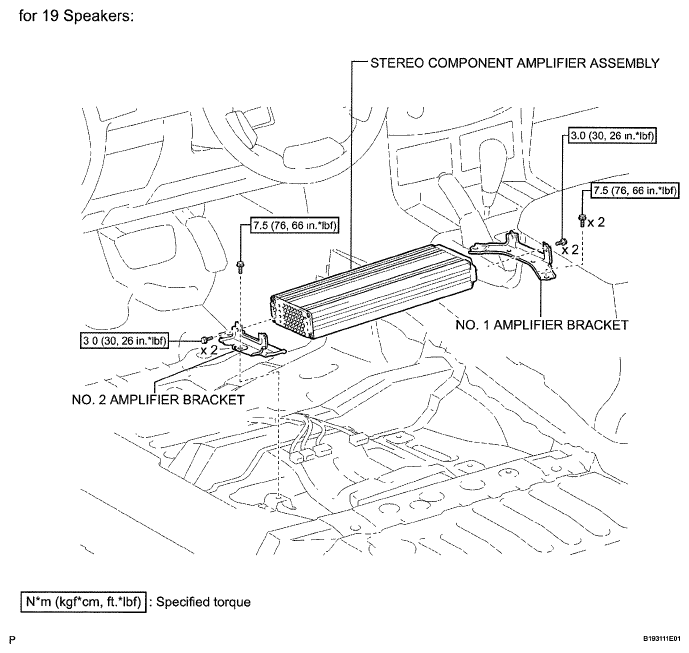

Fig 7: Identifying Stereo Component Amplifier Replacement Components With Torque Specifications (7 Of 7)
G05763068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
