MULTI-DISPLAY (w/o Navigation System): Components

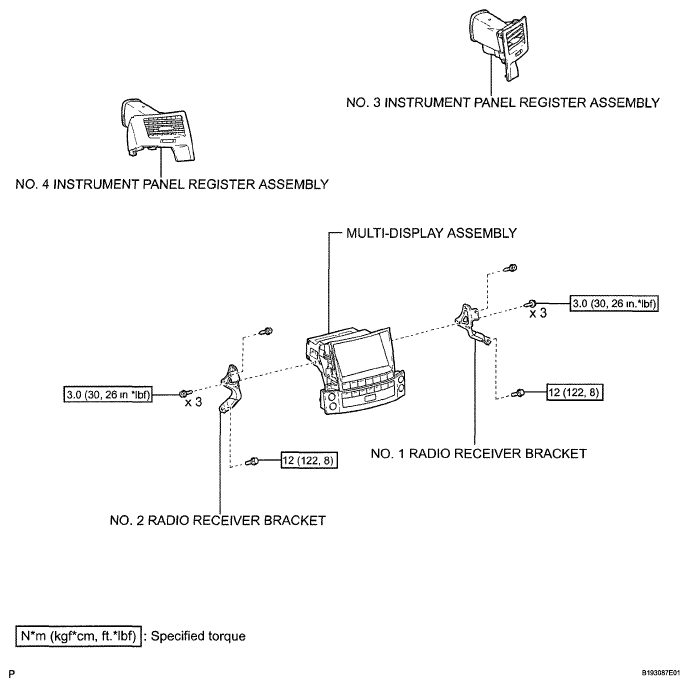

Fig 1: Multi-Display Replacement Components With Torque Specifications (w/o Navigation System)
G05763053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
