Parts Location

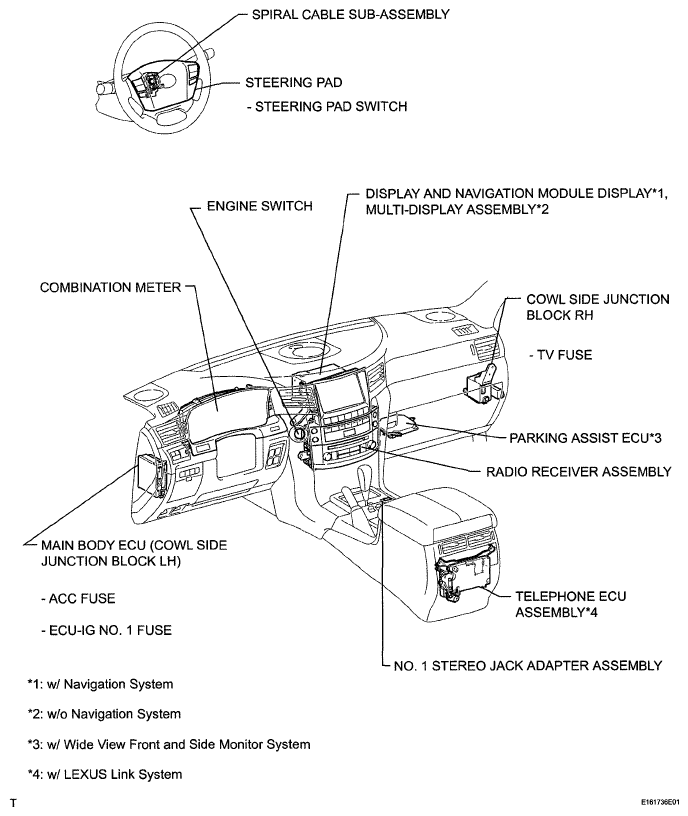

Fig 1: Identifying Audio And Visual System Parts Location (1 Of 5)
G05762691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

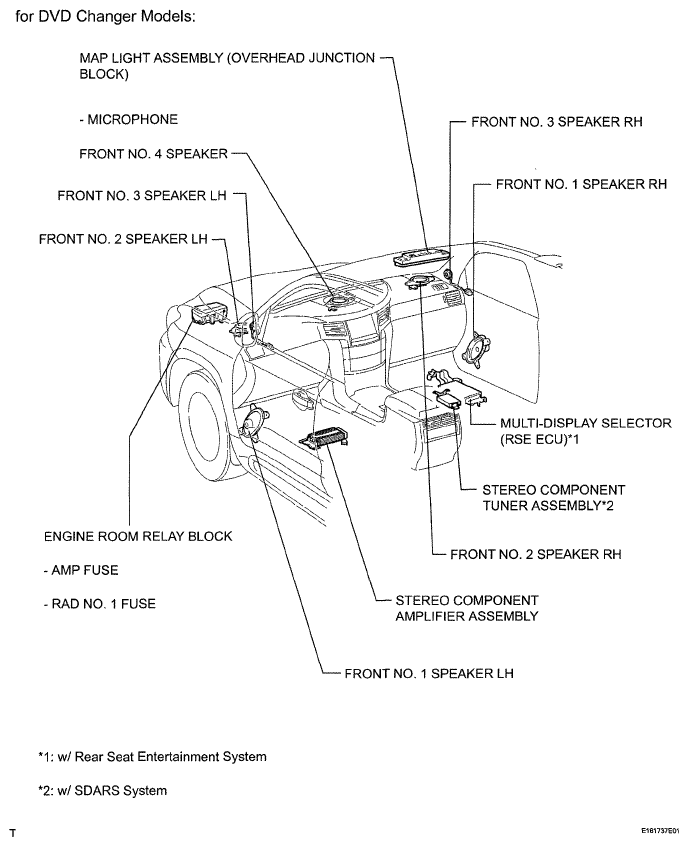

Fig 2: Identifying Audio And Visual System Parts Location (2 Of 5)
G05762692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

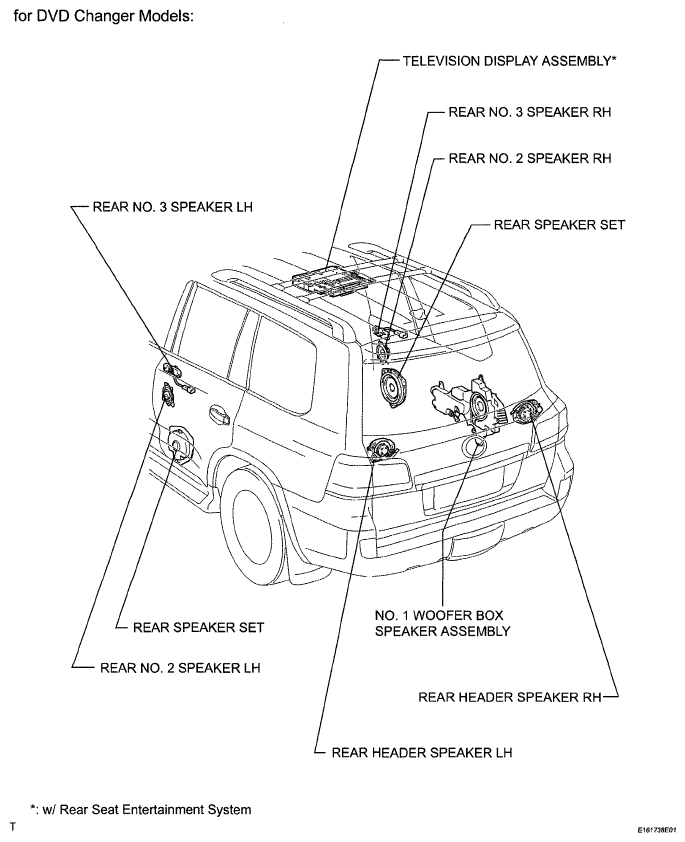

Fig 3: Identifying Audio And Visual System Parts Location (3 Of 5)
G05762693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

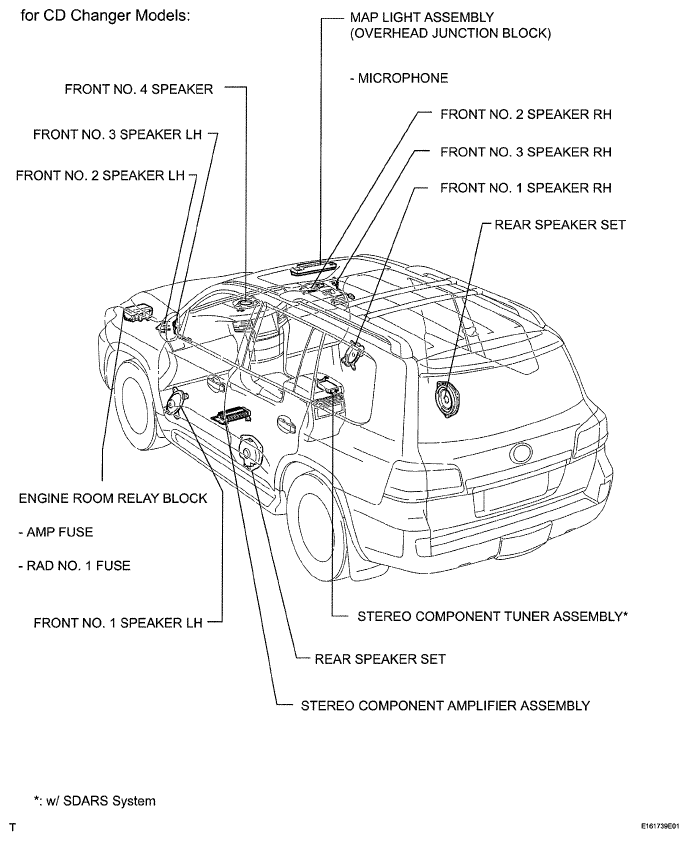

Fig 4: Identifying Audio And Visual System Parts Location (4 Of 5)
G05762694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

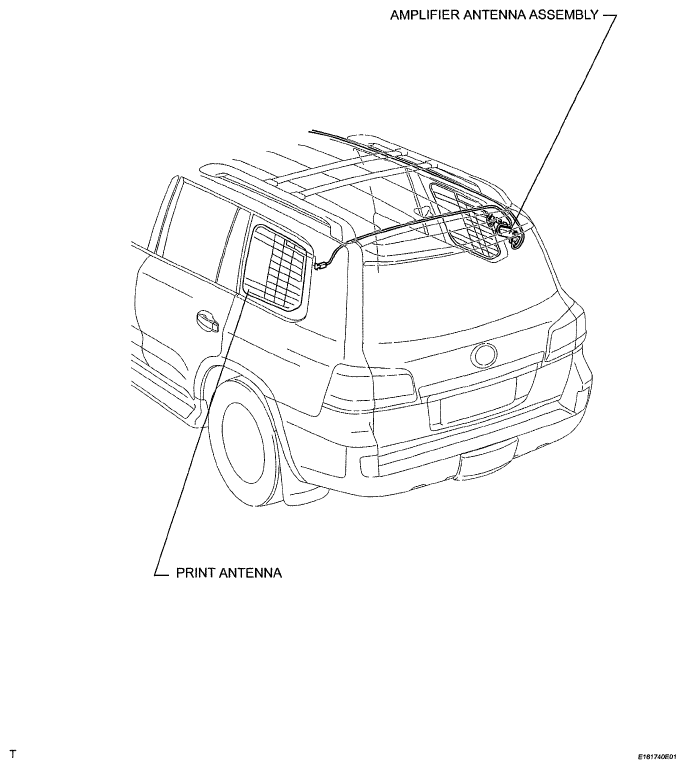

Fig 5: Identifying Audio And Visual System Parts Location (5 Of 5)
G05762695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
