Inspection Procedure

HINT:

If the vehicle has a navigation system, "multi-display" refers to the "display and navigation module display".

1. CHECK POWER SOURCE CIRCUIT
   1. w/ Navigation System: Refer to the Display and Navigation Assembly Power Source Circuit (See DISPLAY AND NAVIGATION ASSEMBLY POWER SOURCE CIRCUIT ).
   2. w/o Navigation System: Refer to the MULTI-DISPLAY POWER SOURCE CIRCUIT  (See ).
2. IDENTIFY COMPONENT WHICH HAS STORED THIS CODE
   1. Enter the diagnostic mode.
   2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
   3. Identify the component which has stored this code.

      Component Table

      COMPONENT CHART



      Display	Component
      AUDIO	Radio receiver
      DSP-AMP	Stereo component amplifier
      CAMERA-C(1)	Parking assist ECU
      XM(2)	Stereo component tuner
      RSE(3)	Television display
      (1) w/ Wide View Front and Side Monitor System (2) w/ SDARS System (3) w/ Rear Seat Entertainment System

      HINT:

      "NAVI" is the component which has stored this code in the example shown in the illustration.

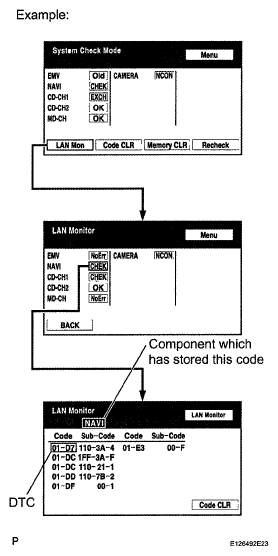

      Fig 1: Identifying NAVI Component

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. CHECK POWER SOURCE CIRCUIT OF COMPONENT WHICH HAS STORED THIS CODE
   1. Inspect the power source circuit of the component which has stored this code.

      Component Table

      COMPONENT CHART



      Display	Proceed to
      Radio receiver (AUDIO)	Radio receiver power source circuit (See RADIO RECEIVER POWER SOURCE CIRCUIT  )
      Stereo component amplifier (DSP-AMP)	Stereo component amplifier power source circuit (See STEREO COMPONENT AMPLIFIER POWER SOURCE CIRCUIT  )
      Parking assist ECU (CAMERA-C)(1)	Parking assist ECU power source circuit (See ECU POWER SOURCE CIRCUIT )
      Stereo component tuner (XM)(2)	Satellite radio tuner power source circuit (See SATELLITE RADIO TUNER POWER SOURCE CIRCUIT  )
      Television display (RSE)(3)	Television display power source circuit (See TELEVISION DISPLAY POWER SOURCE CIRCUIT  )
      (1) w/ Wide View Front and Side Monitor System (2) w/ SDARS System (3) w/ Rear Seat Entertainment System

      If the power source circuit is operating normally, proceed to the next step.

4. INSPECT RADIO RECEIVER ASSEMBLY
   Fig 2: Identifying F1, F23 And F24 Receiver Connectors Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Disconnect the F1, F23 and F24 receiver connectors.
   2. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      STANDARD RESISTANCE



      Tester Connection	Condition	Specified Condition
      F1-5 (ATX+) - F1-15 (ATX-)	Always	60 to 80 Ω
      F23-9 (TX+) - F23-10 (TX-)	Always	60 to 80 Ω
      F24-9 (TXM+) - F24-10 (TXM-)	Always	60 to 80 Ω

   NG: REPLACE RADIO RECEIVER ASSEMBLY  (See REMOVAL  )

   OK: Go to next Step

5. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - COMPONENT WHICH HAS STORED THIS CODE)

   HINT:

   For details of the connectors, refer to TERMINALS OF ECU  (See ).

   1. Check the AVC-LAN circuit between the multi-display and the component which has stored this code.
      1. Disconnect all connectors between the multi-display and the component which has stored this code.
      2. Check for an open or short in the AVC-LAN circuit between the multi-display and the component which has stored this code.

         OK: There is no open or short circuit.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: Go to next Step

6. REPLACE COMPONENT WHICH HAS STORED THIS CODE
   1. Replace the component which has stored this code with a normal one and check if the same problem occurs again.

      OK: Same problem does not occur.

      Result

      RESULT REFERENCE



      Result	Proceed to
      OK	A
      NG (w/ Navigation System)	B
      NG (w/o Navigation System)	C

   B: REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY  (See REMOVAL )

   C: REPLACE MULTI-DISPLAY ASSEMBLY  (See REMOVAL  )

   A: END
