Distance Control Ecu: Components

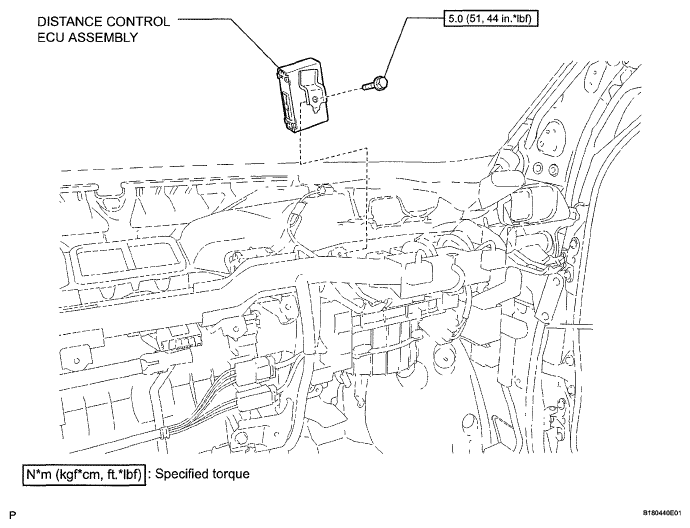

Fig 1: Distance Control ECU Replacement Components With Torque Specifications
G05760438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
