Bus Buffer Ecu: Components

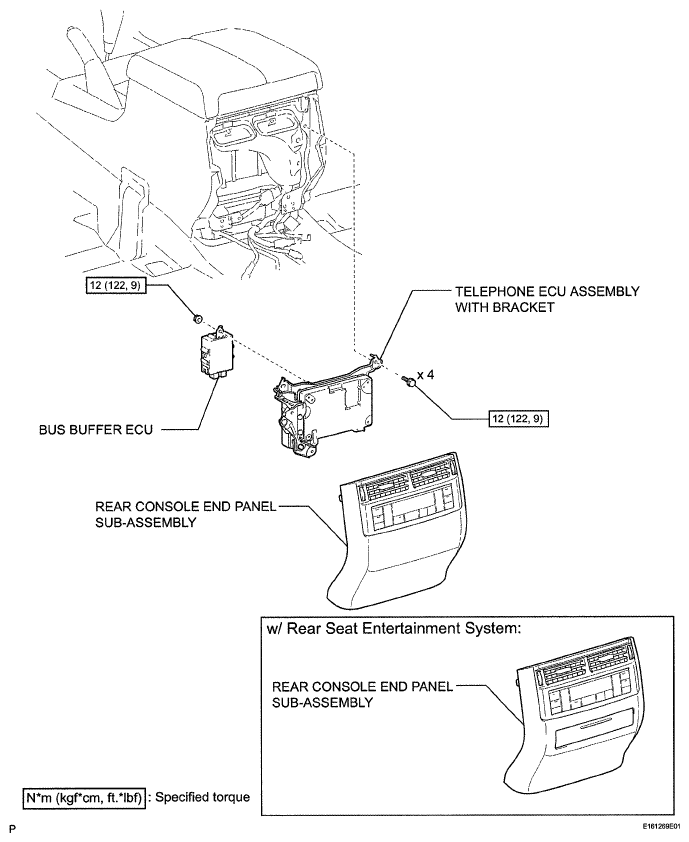

Fig 1: Bus Buffer ECU Replacement Components With Torque Specifications
G05764799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
