Sound Signal Circuit between Radio Receiver and Multi-display Controller: Wiring Diagram

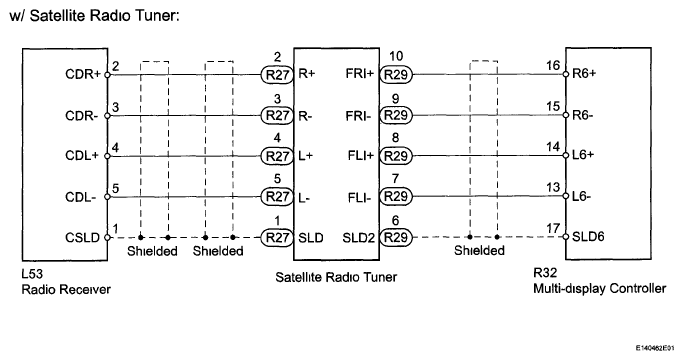

Fig 1: Sound Signal Circuit Between Radio Receiver And Multi-Display Controller - Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Sound Signal Circuit Between Radio Receiver And Multi-Display Controller - Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
