ABSORBER CONTROL ACTUATOR (for Front Side): Components

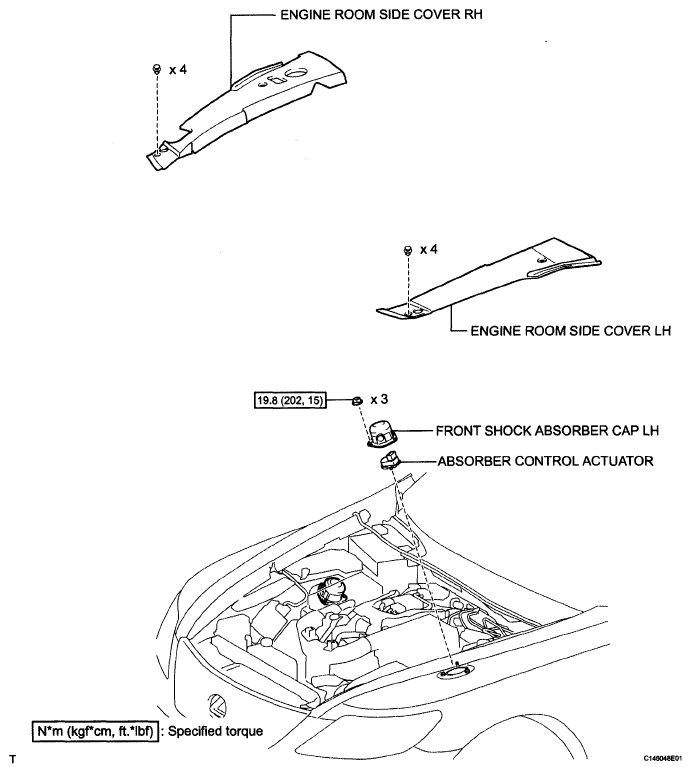

Fig 1: Identifying Absorber Control Actuator (For Front Side) Replacement Components With Torque Specifications
G05848135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
