SEAT CLIMATE CONTROL SWITCH (for Rear Side): Components

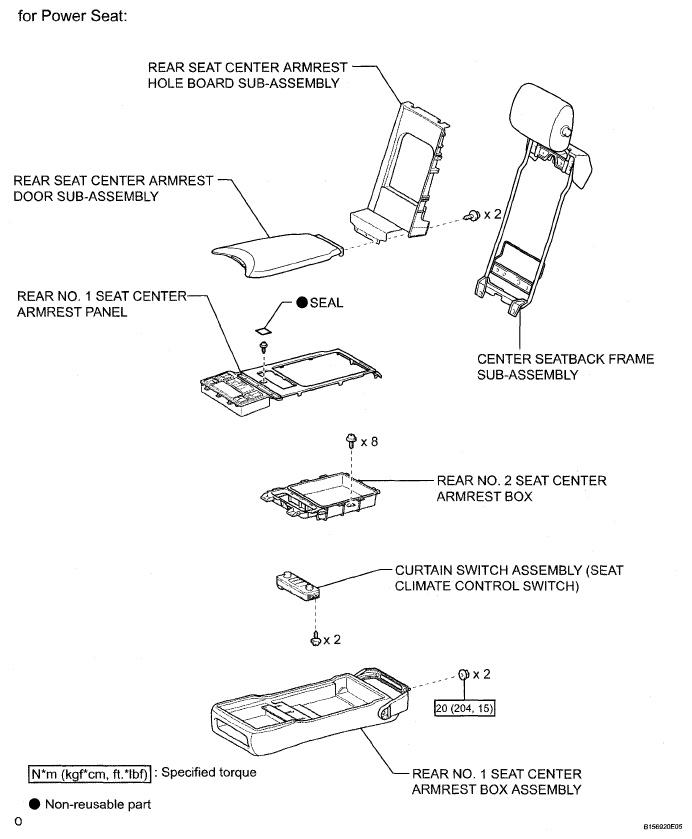

Fig 1: Rear Seat Center Armrest Replacement Components & Seat Climate Control Switch With Torque Specifications (Rear Side)
G04953186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
