DTC B2650 Slide Sensor Malfunction: Wiring Diagram

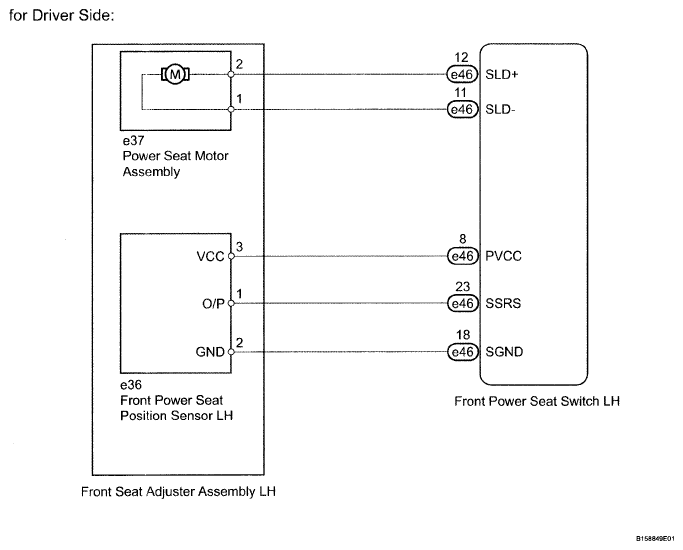

Fig 1: Slide Sensor - Wiring Diagram (Driver Side)
G05856030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Slide Sensor - Wiring Diagram (Passenger Side)
G04952423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
