Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Seat
>>
Front Power Seat Control System
>>
Driver Side Seat Memory Switch Circuit
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver Side Seat Memory Switch Circuit: Wiring Diagram

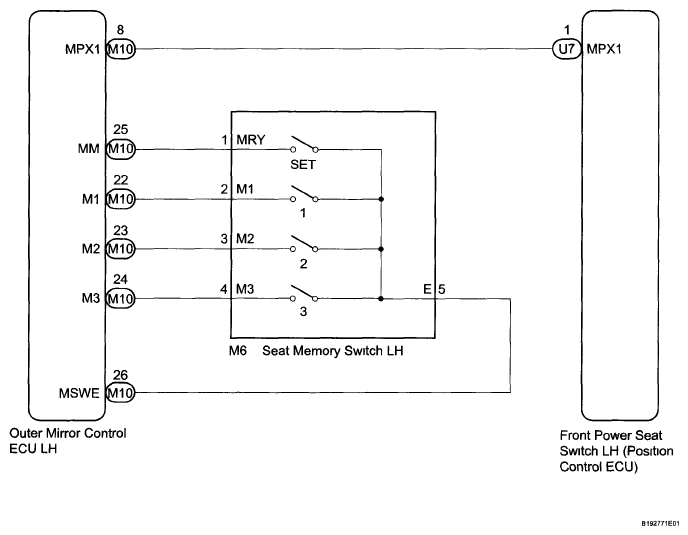

Fig 1: Driver Side Seat Memory Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
