Climate Control Seat System does not Operate: Wiring Diagram

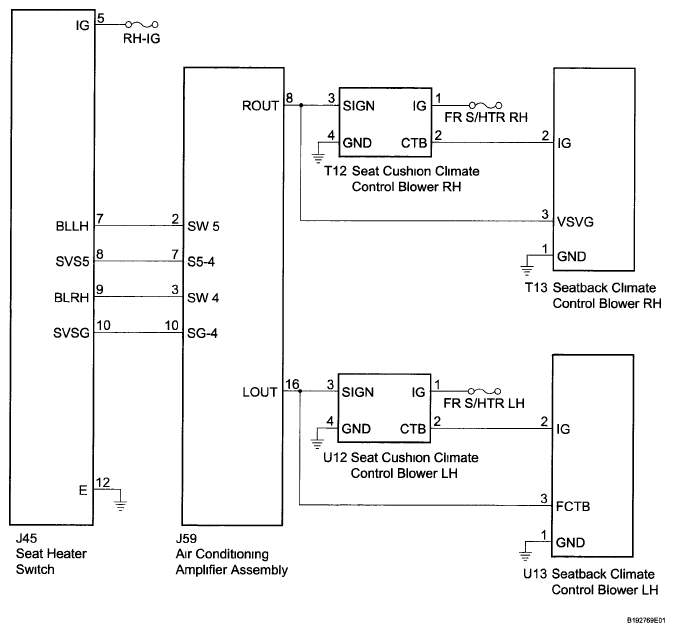

Fig 1: Climate Control Seat System Wiring Diagram
G05754872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
