Rear Package Tray Speaker: Components

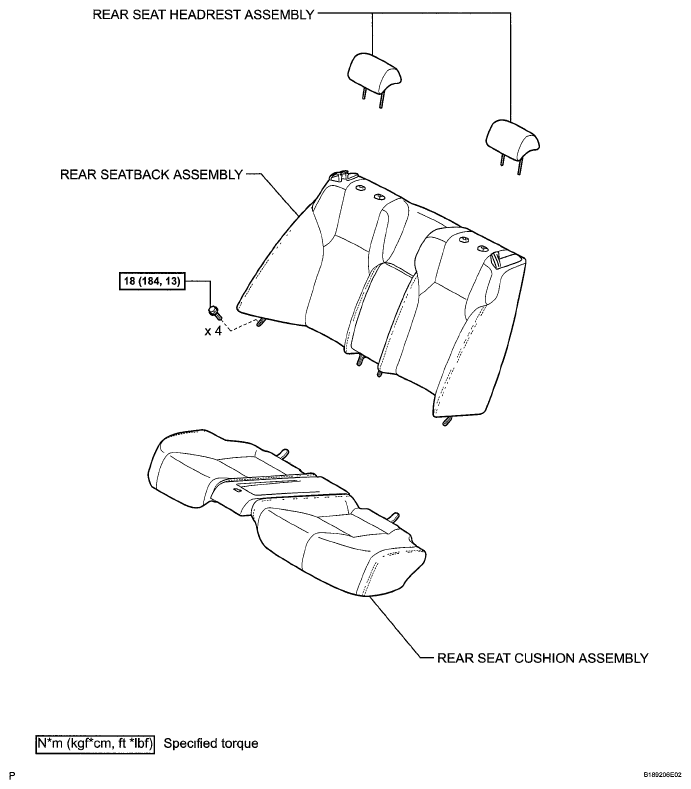

Fig 1: Rear Package Tray Speaker Replacement Components (1 Of 2) with Torque Specifications
G05753460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

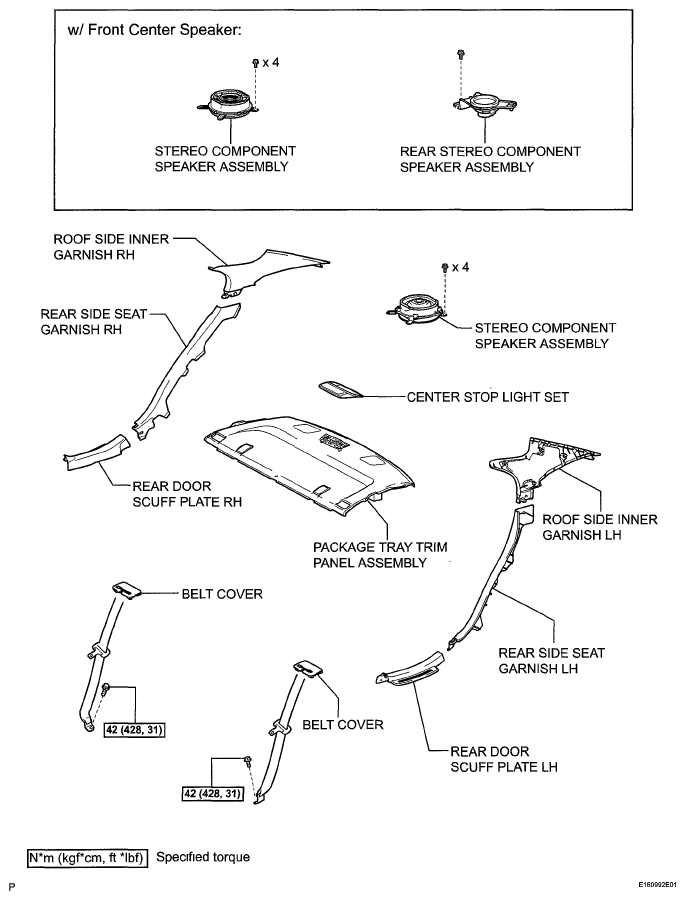

Fig 2: Rear Package Tray Speaker Replacement Components (2 Of 2) with Torque Specifications
G05753461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
