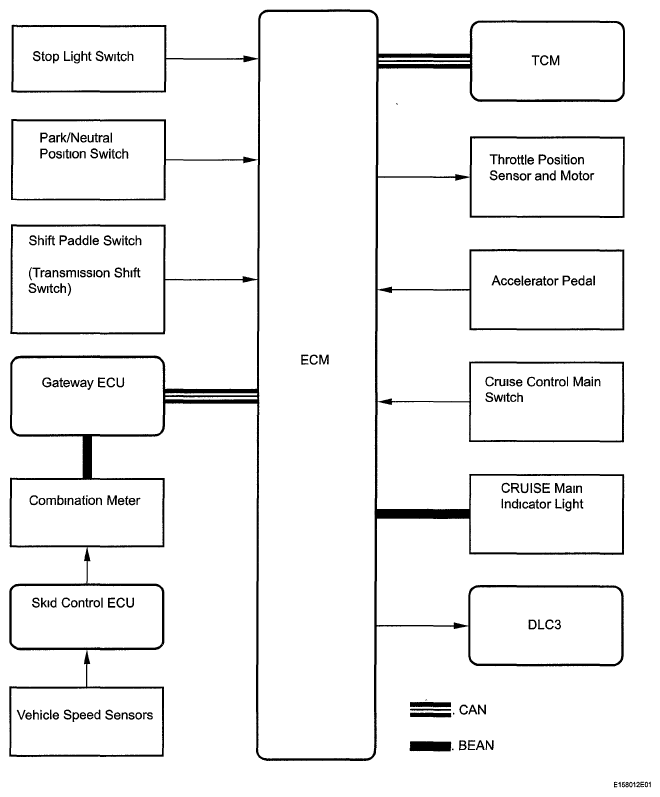

System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table
COMMUNICATION REFERENCE CHART
| Sender |
Receiver |
Signal |
Line |
| ECM |
Combination Meter ECU (CRUISE Main Indicator Light) |
CRUISE main indicator operation signal |
BEAN |
| ECM |
TCM |
Shift up/down request signal |
CAN |
| TCM |
ECM |
Shift up/down response |
CAN |
