System Diagram

  1. FUEL FLOW DIAGRAM

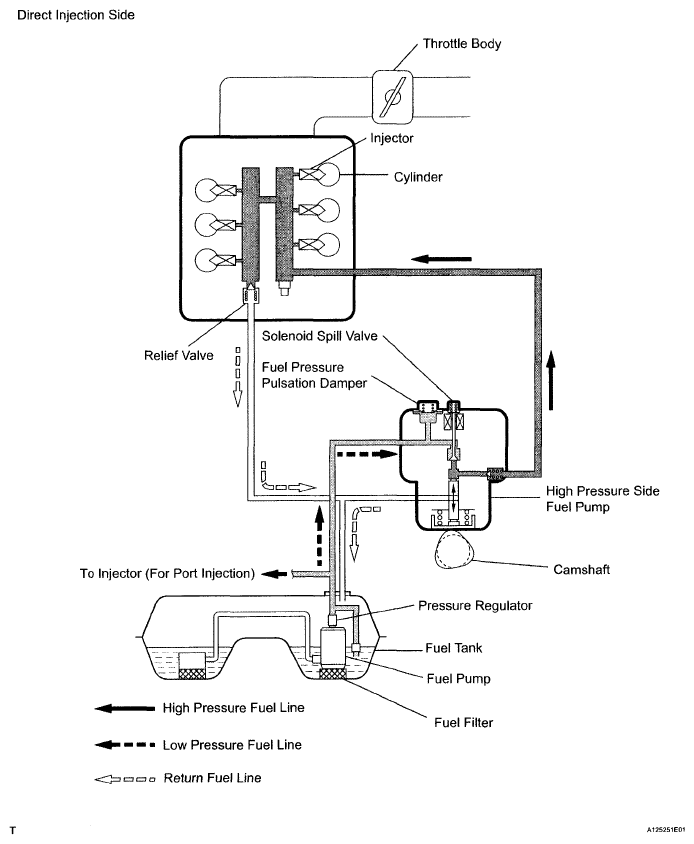

    Fig 1: Fuel Flow Diagram - Direct Injection Side
    G05826266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

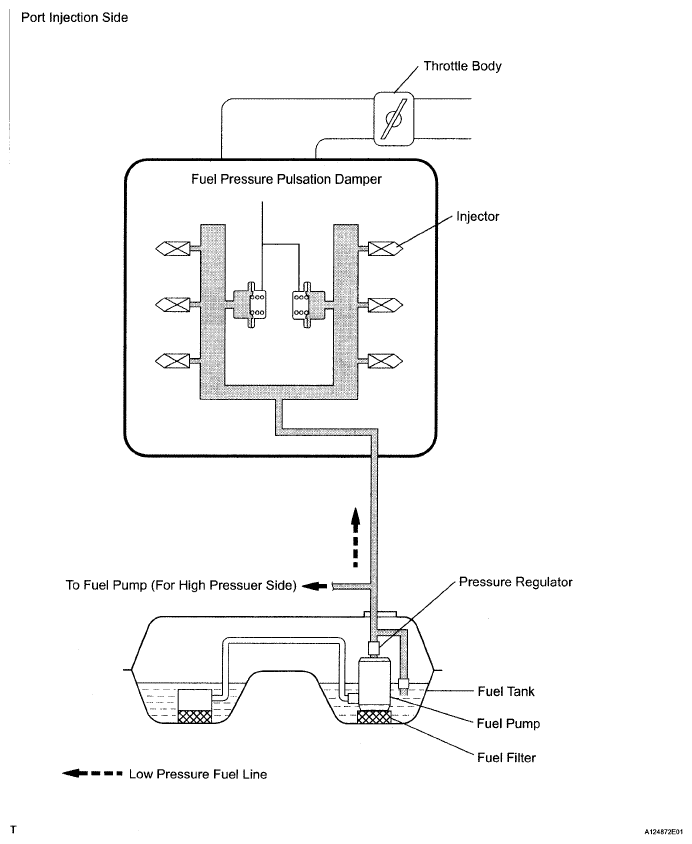

    Fig 2: Fuel Flow Diagram - Port Injection Side
    G05826267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ELECTRICAL CONTROL DIAGRAM

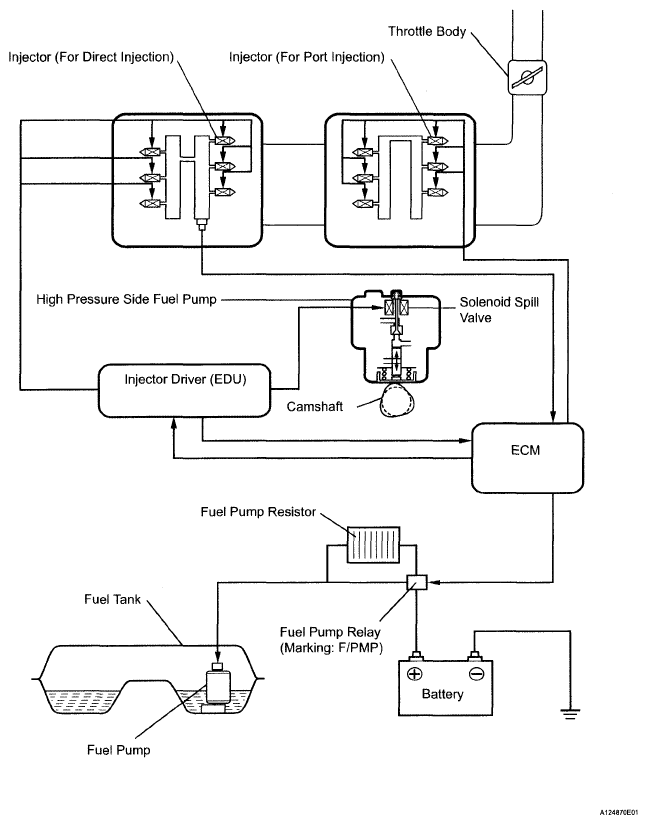

    Fig 3: Electrical Control Diagram
    G05826268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. HIGH PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

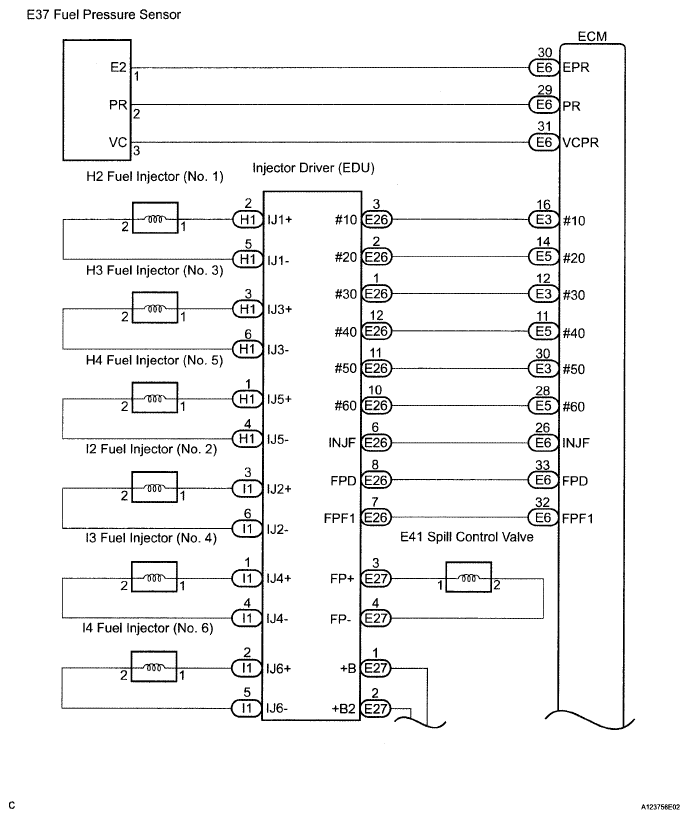

    Fig 4: High Pressure Side Fuel System Wiring Diagram (1 Of 2)
    G05826269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 5: High Pressure Side Fuel System Wiring Diagram (2 Of 2)
    G05826270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

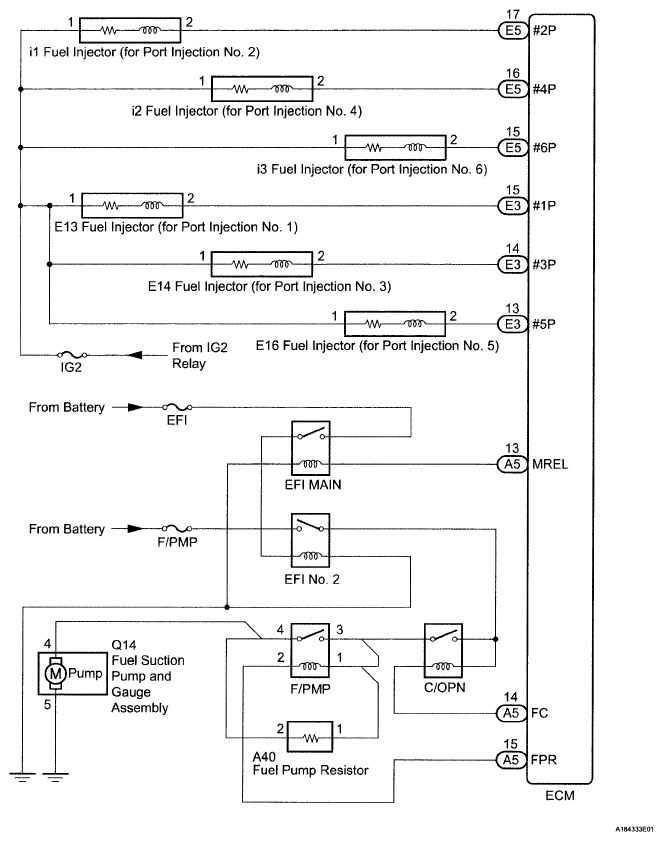

Fig 6: Low Pressure Side Fuel System Wiring Diagram
G05826271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
