Charging (2GR-FSE): Generator: Components

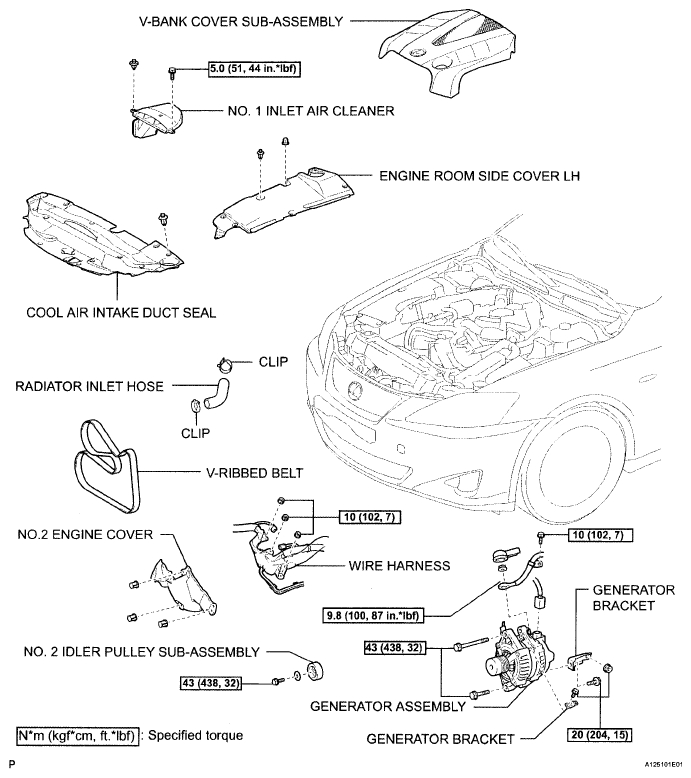

Fig 1: Exploded View Of Generator Components (1 Of 2) With Torque Specifications
G05829484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Generator Components (2 Of 2) With Torque Specifications
G05829485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
