Clutch Unit: Components

WARNING: This page is about a different variant/trim than selected.

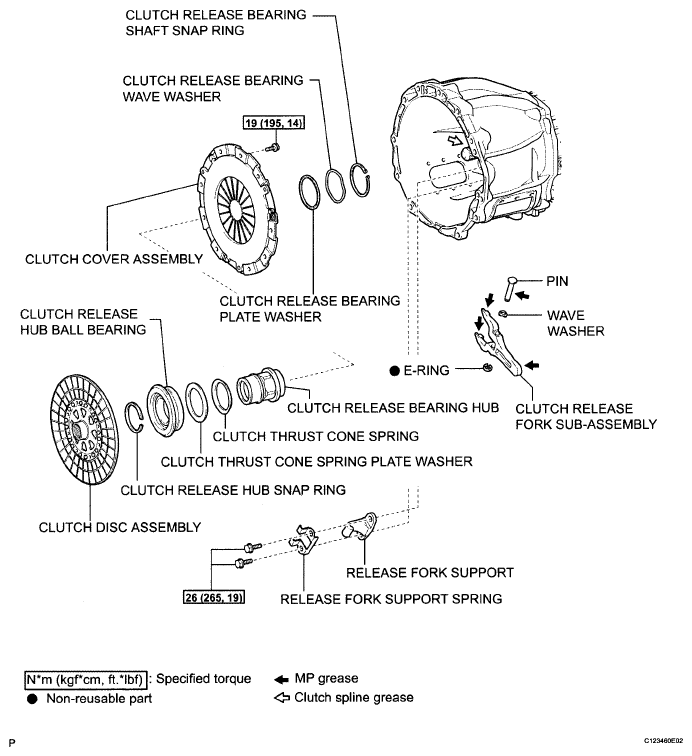

Fig 1: Clutch Unit Components with Torque Specifications
G05830188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
