Charging (4GR-FSE): Generator: Components

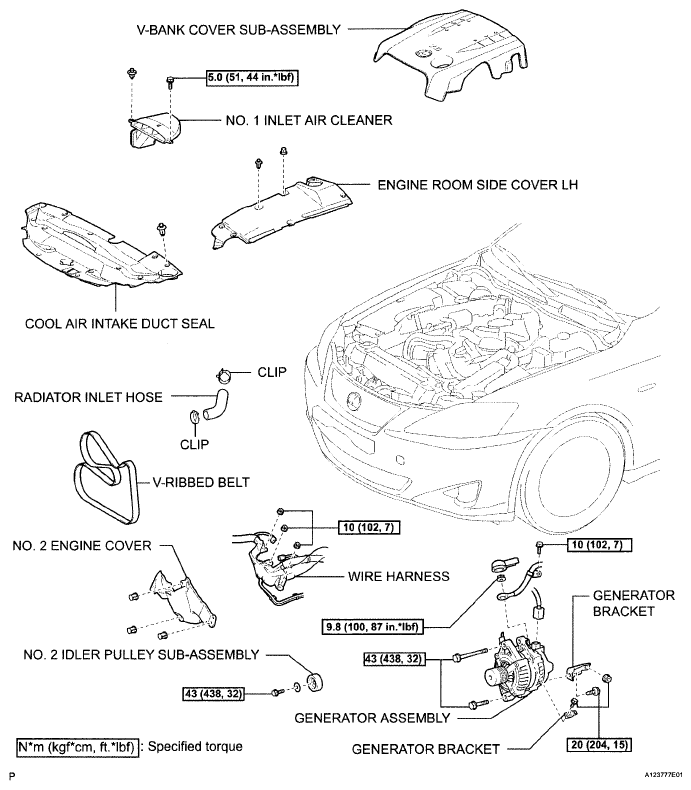

Fig 1: View Of Generator Replacement Components With Torque Specifications
G05823921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

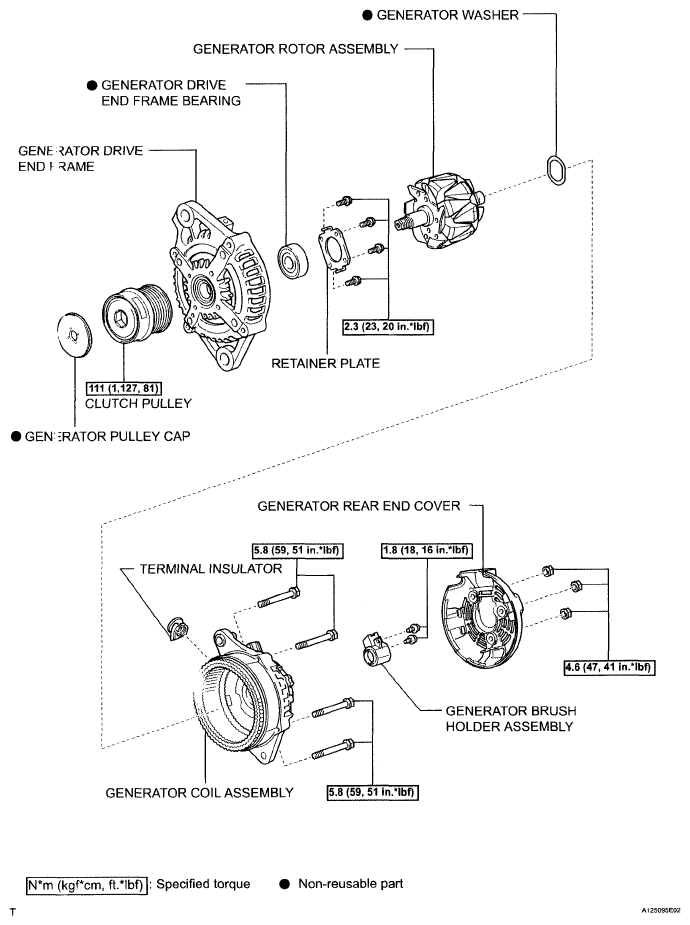

Fig 2: Exploded View Of Generator
G05829485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
