Powertrain Management: Locations








4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION

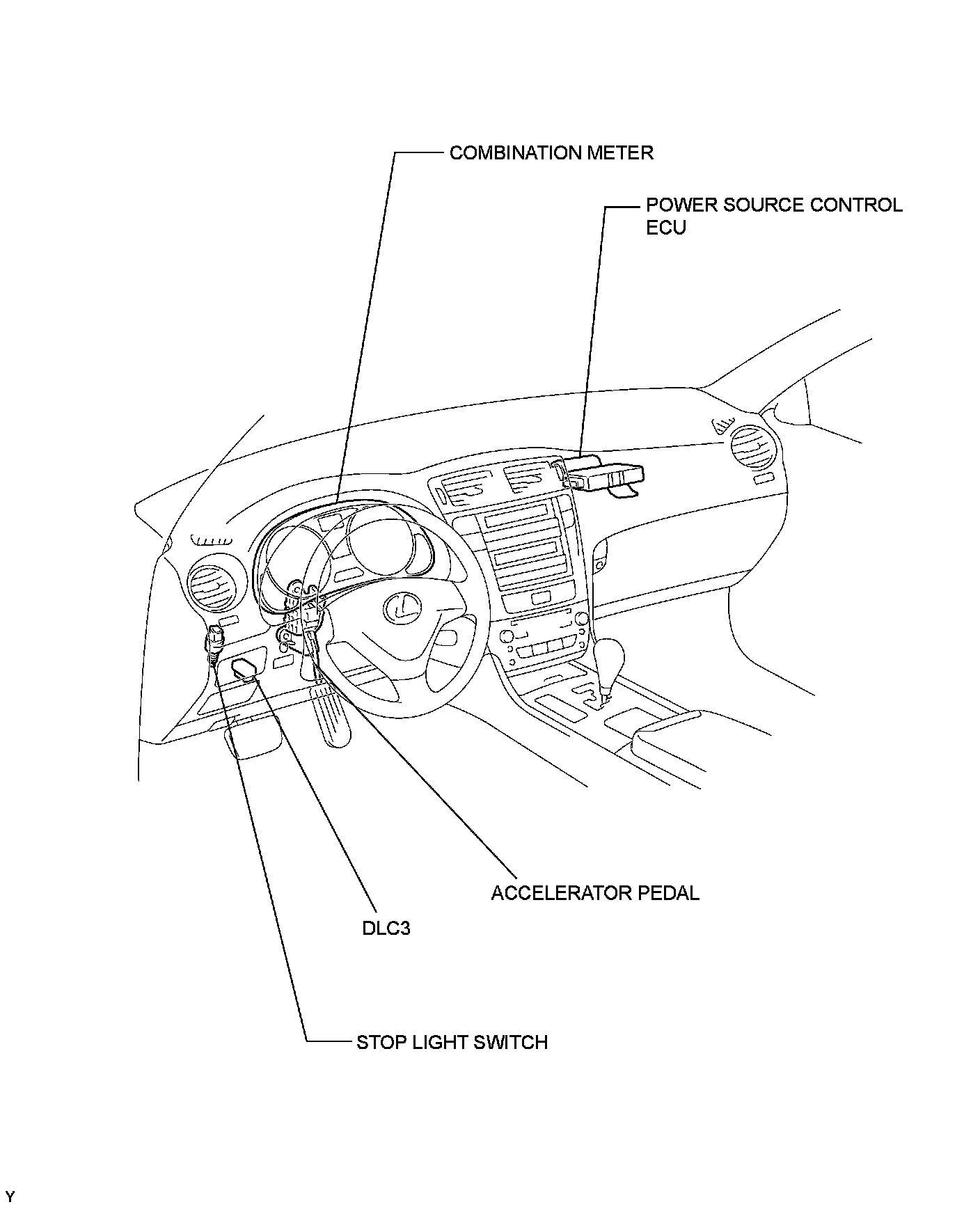

PARTS LOCATION

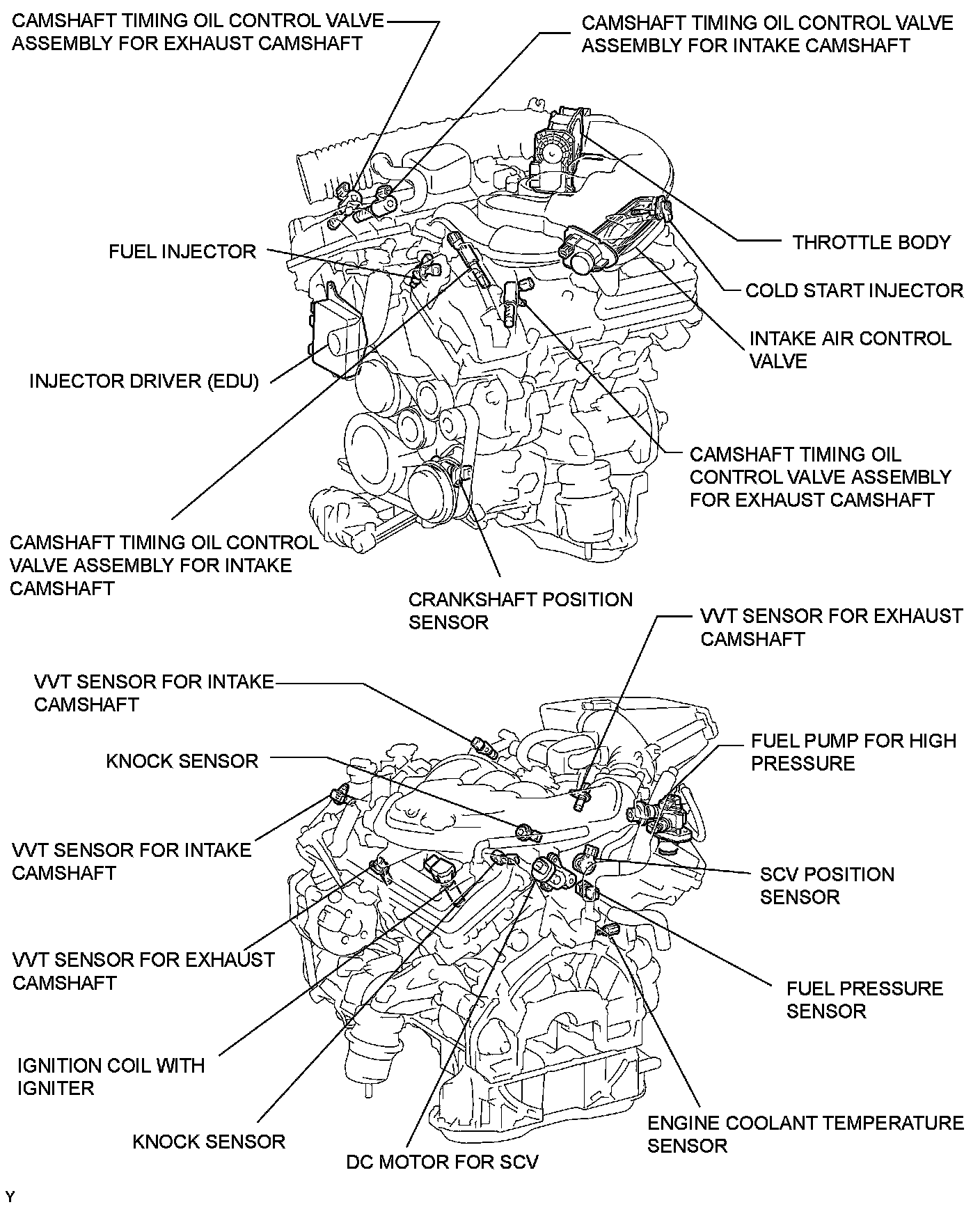

Engine: Heated Oxygen Sensors:

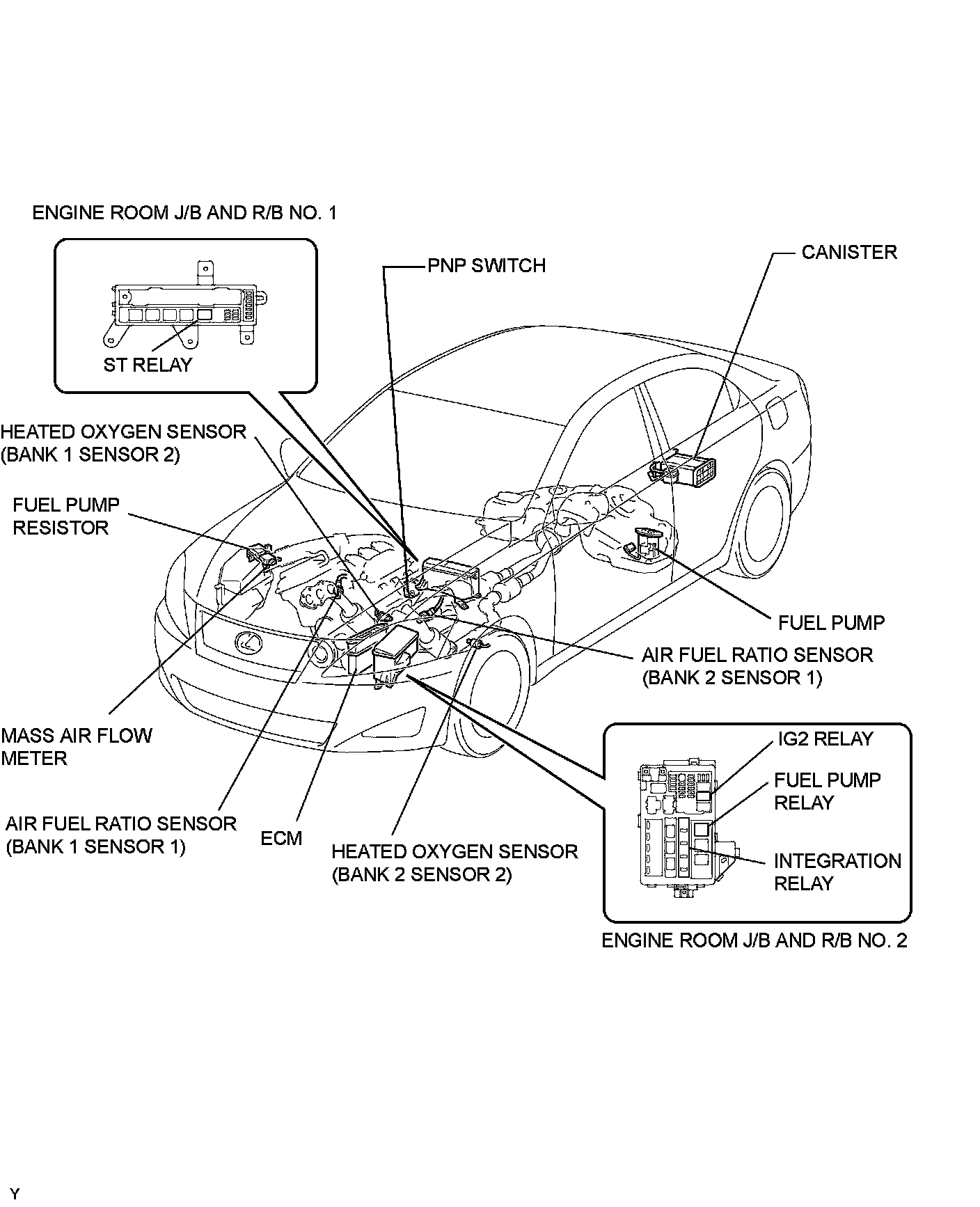

SFI System:






SFI System:
