Problem Symptoms Table
CAN COMMUNICATION SYSTEM:
PROBLEM SYMPTOMS TABLE

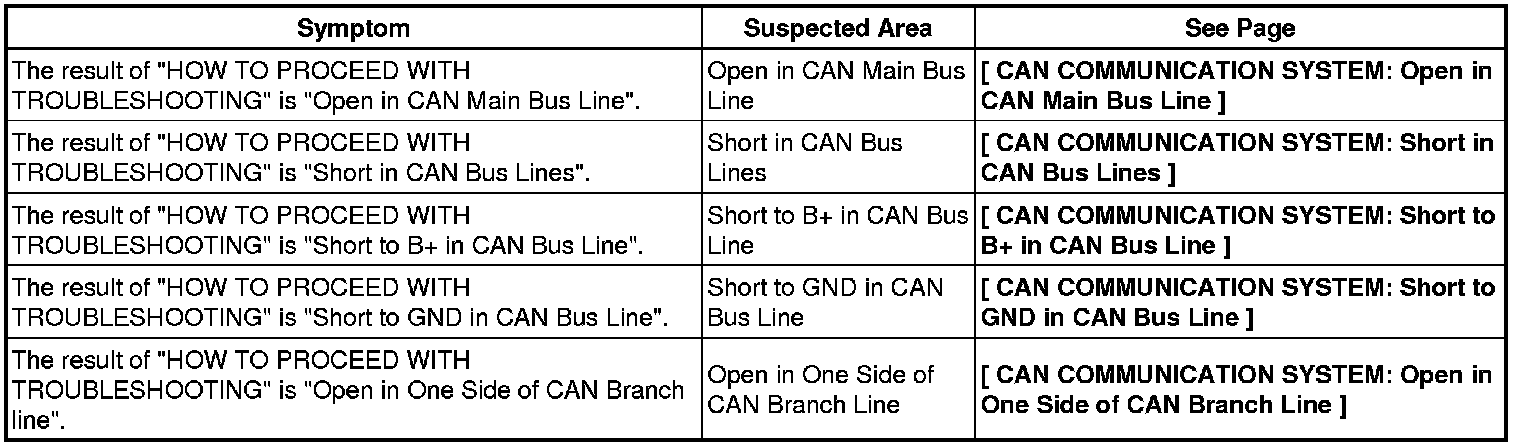

RESULT LIST OF HOW TO PROCEED WITH TROUBLESHOOTING

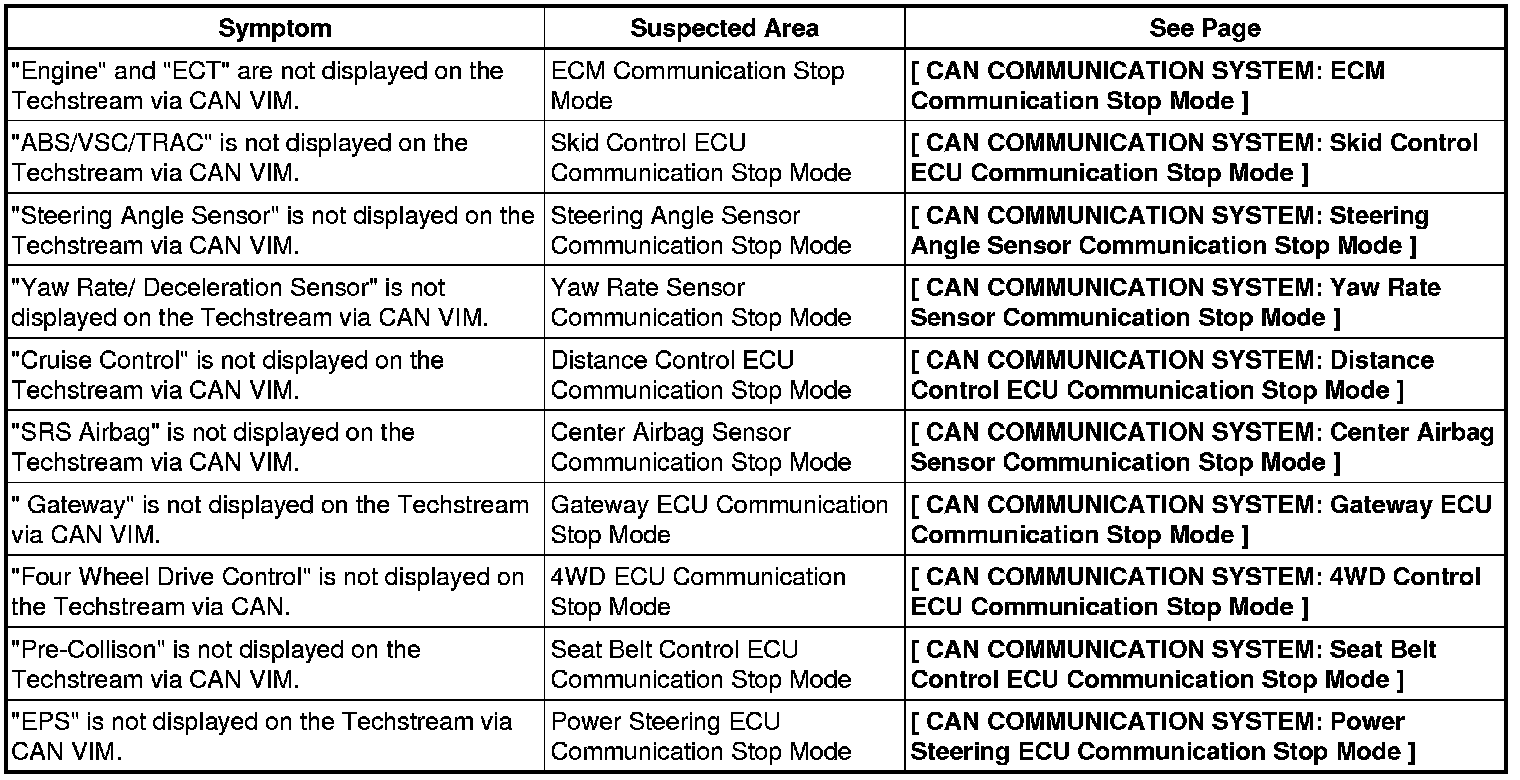

COMMUNICATION STOP MODE TABLE
