Valve Body: Components

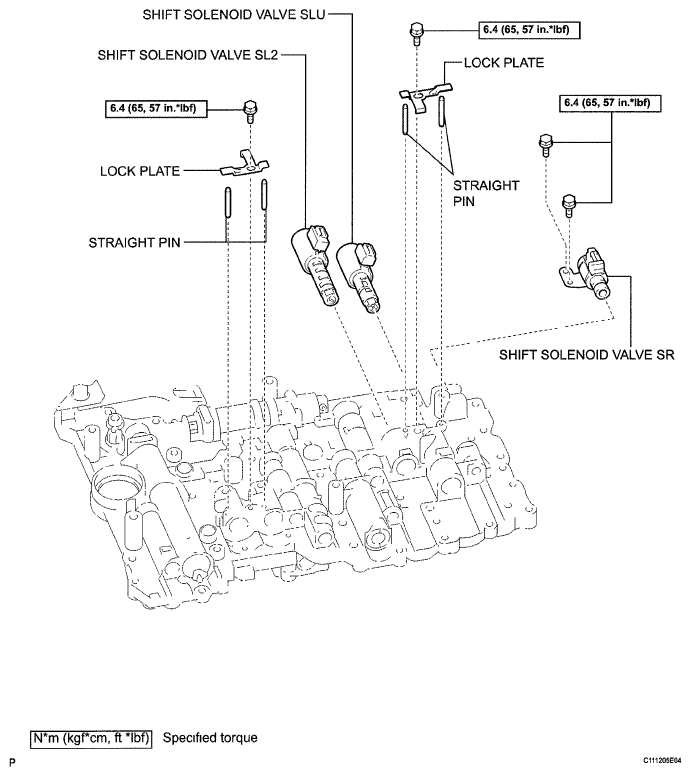

Fig 1: Valve Body Replacement Components With Torque Specifications (1 Of 2)
G05844818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Valve Body Replacement Components With Torque Specifications (2 Of 2)
G05261702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
