Knock Sensor, Intake Manifold: Components

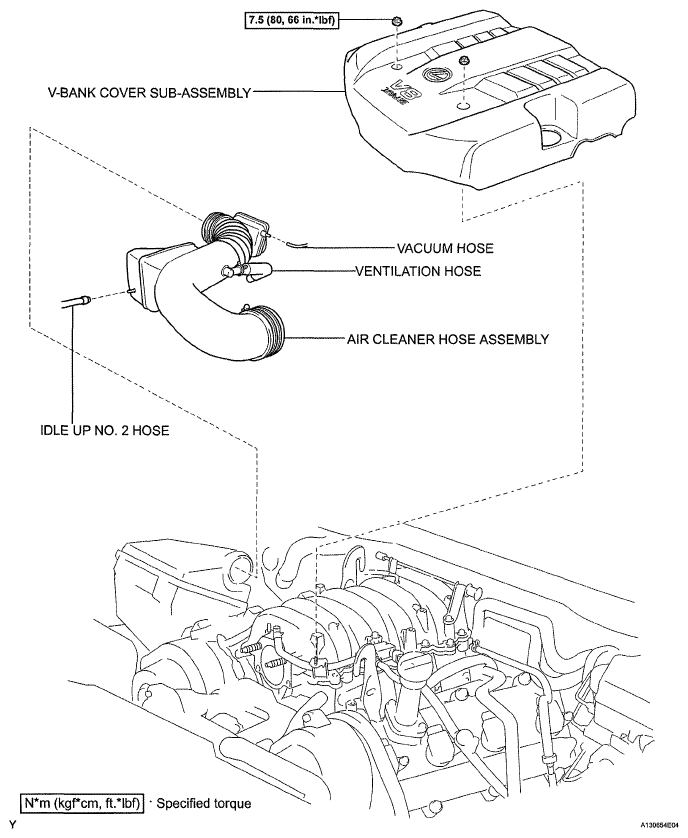

Fig 1: Identifying Knock Sensor Components (1 Of 3)
G05843809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

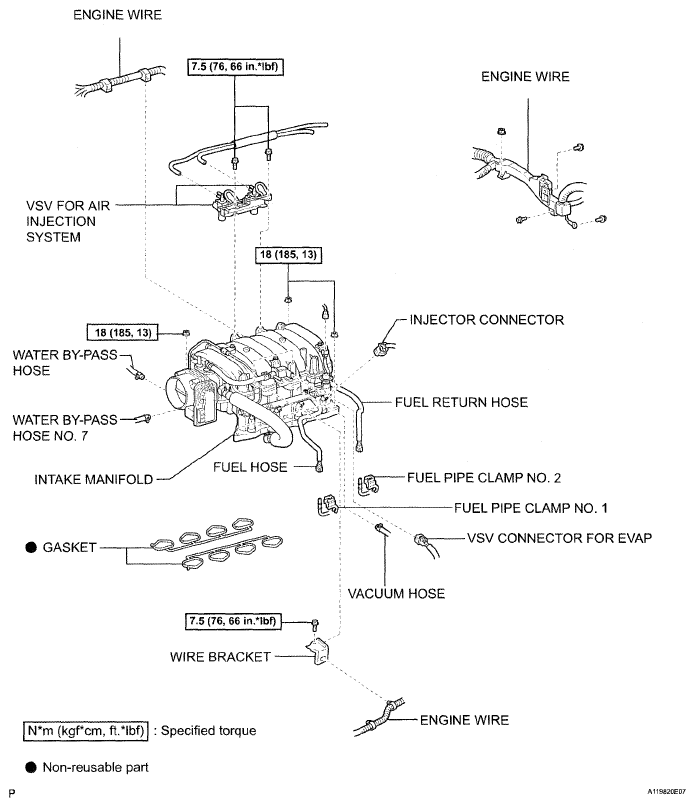

Fig 2: Identifying Knock Sensor Components (2 Of 3)
G05264330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

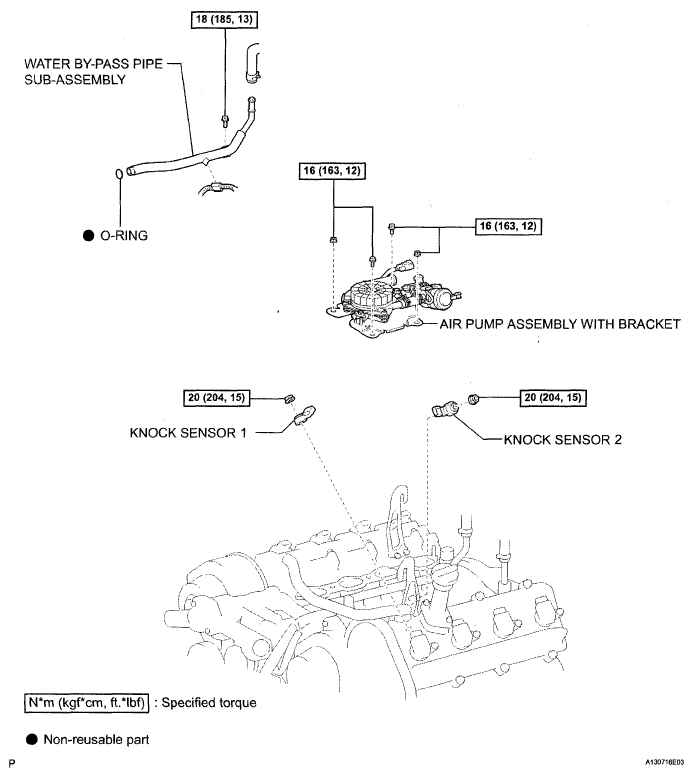

Fig 3: Identifying Knock Sensor Components (3 Of 3)
G05264331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
