Manual Up/Down Function does not Operate on Passenger Side Only: Wiring Diagram

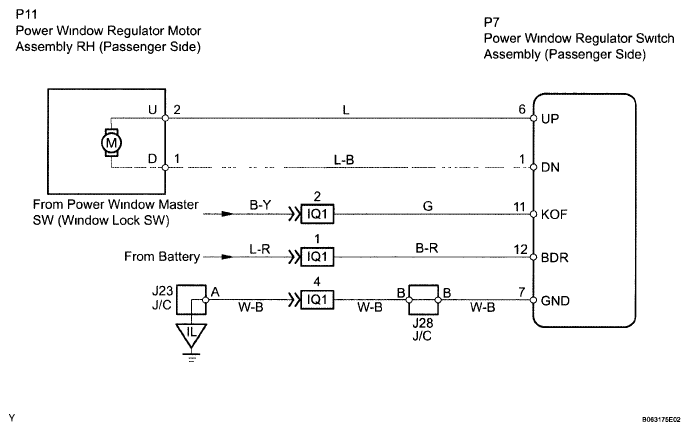

Fig 1: Power Window - Wiring Diagram
G05846611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
