Back Window Glass: Components

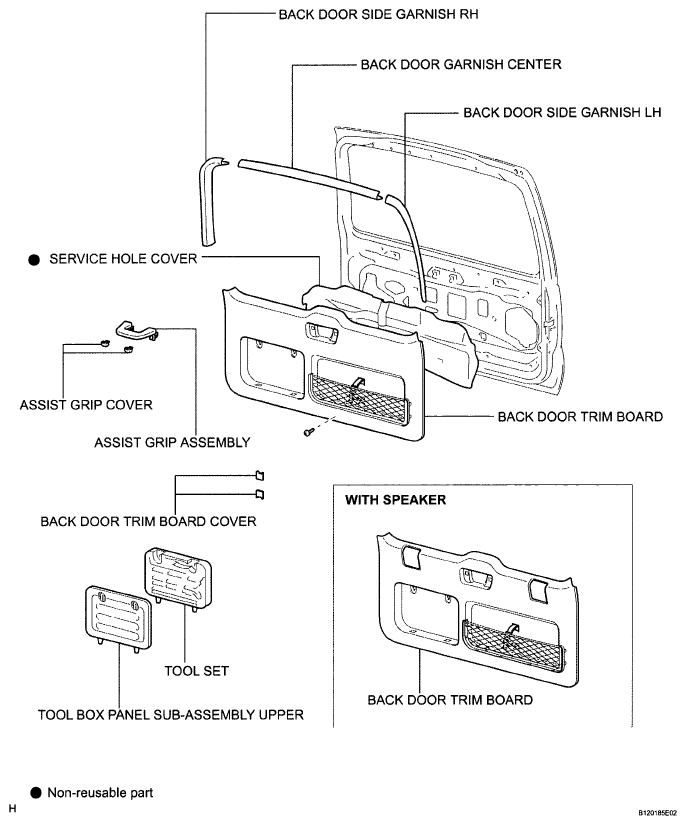

Fig 1: Identifying Back Door Components
G05846672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

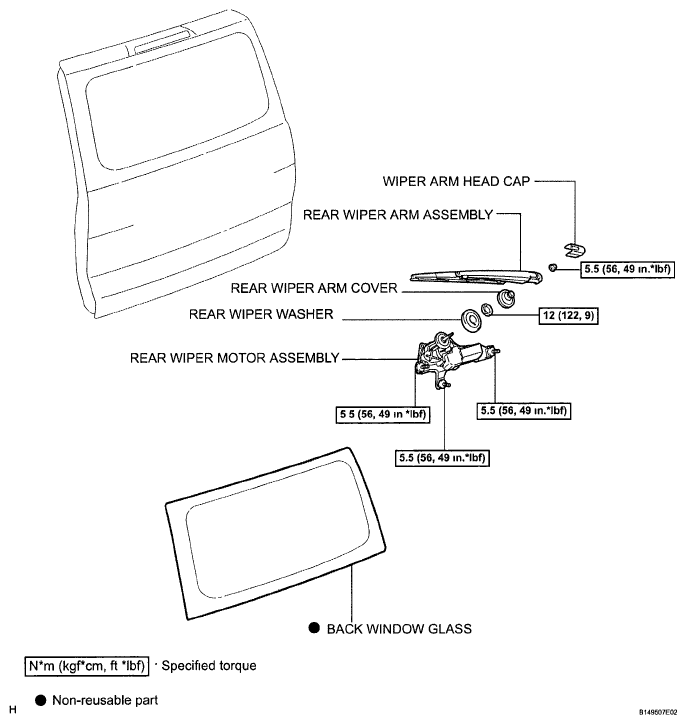

Fig 2: Back Window Glass Replacement Components With Torque Specifications
G05846673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
