Transmission Wire: Components

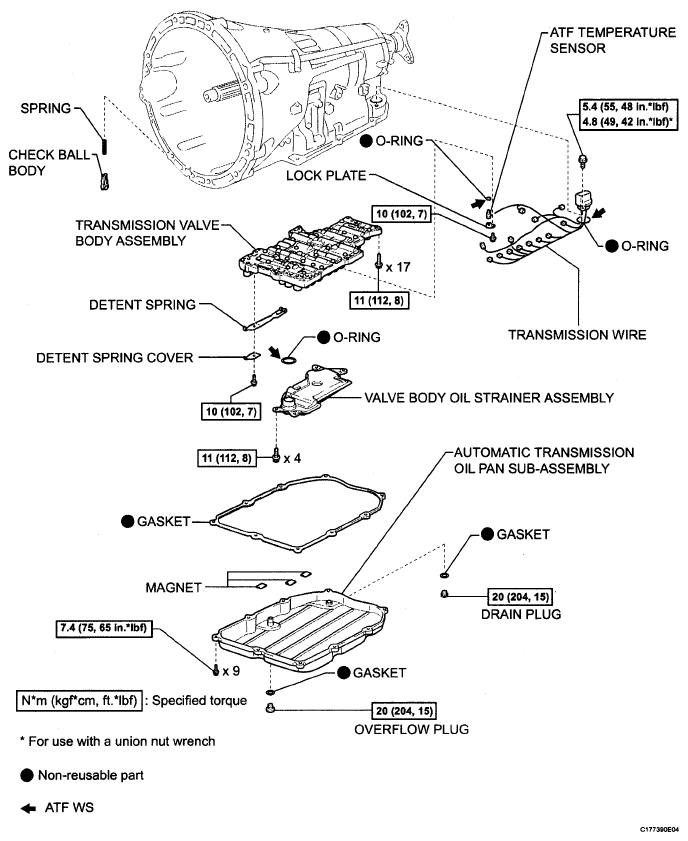

Fig 1: Transmission Wire Replacement Components With Torque Specifications
G05806350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
