Automatic Transaxle: TCM: Components

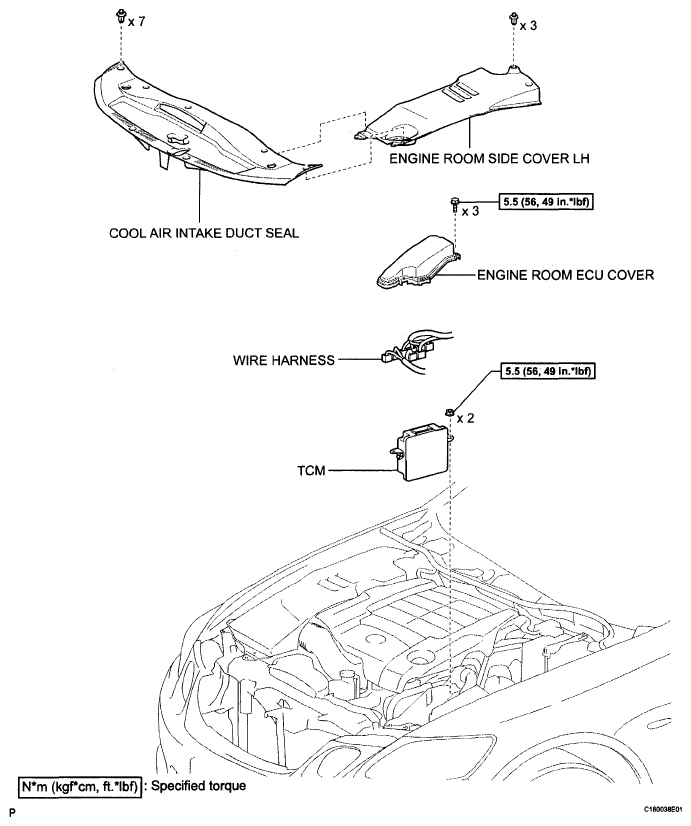

Fig 1: TCM Replacement Components With Torque Specifications
G05806524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
