Shift Lever: Components

Fig 1: Identifying Shift Lever Replacement Components (1 Of 4)
G05818757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

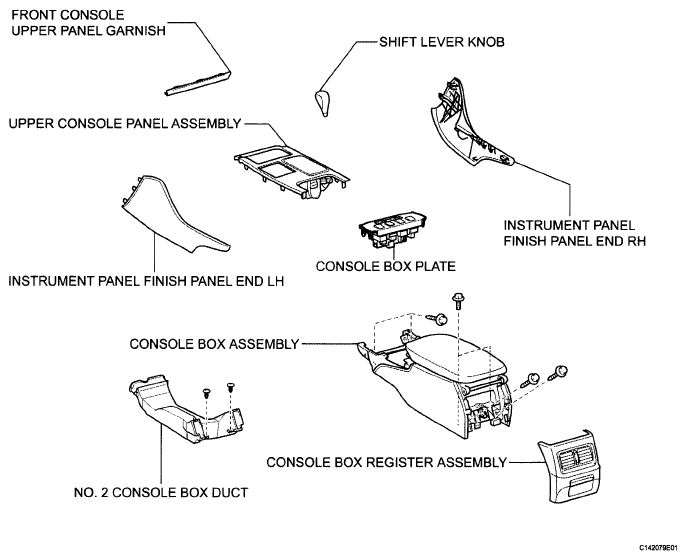

Fig 2: Identifying Shift Lever Components (2 Of 4)
G05818758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

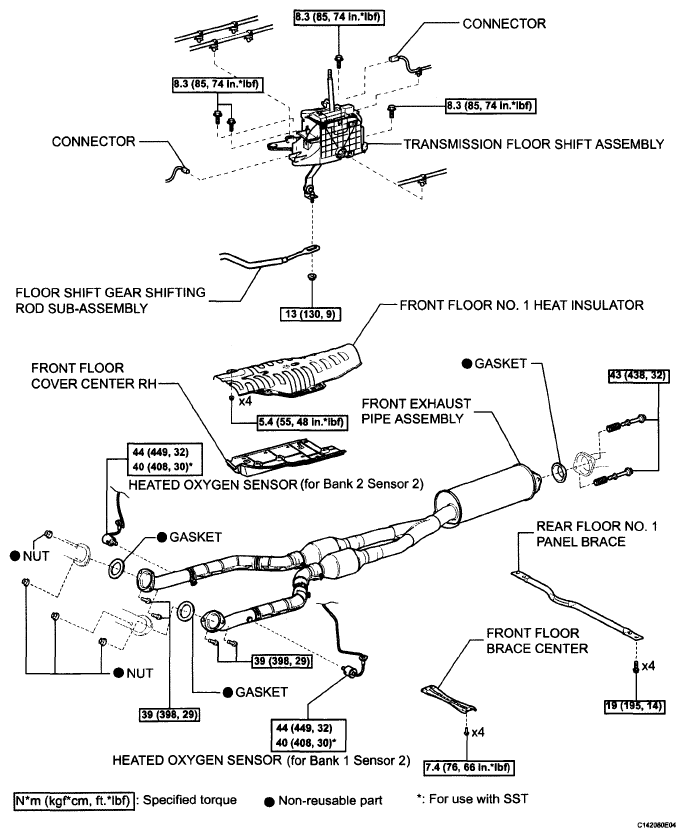

Fig 3: Identifying Shift Lever Replacement Components (3 Of 4) With Torque Specifications
G05818759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

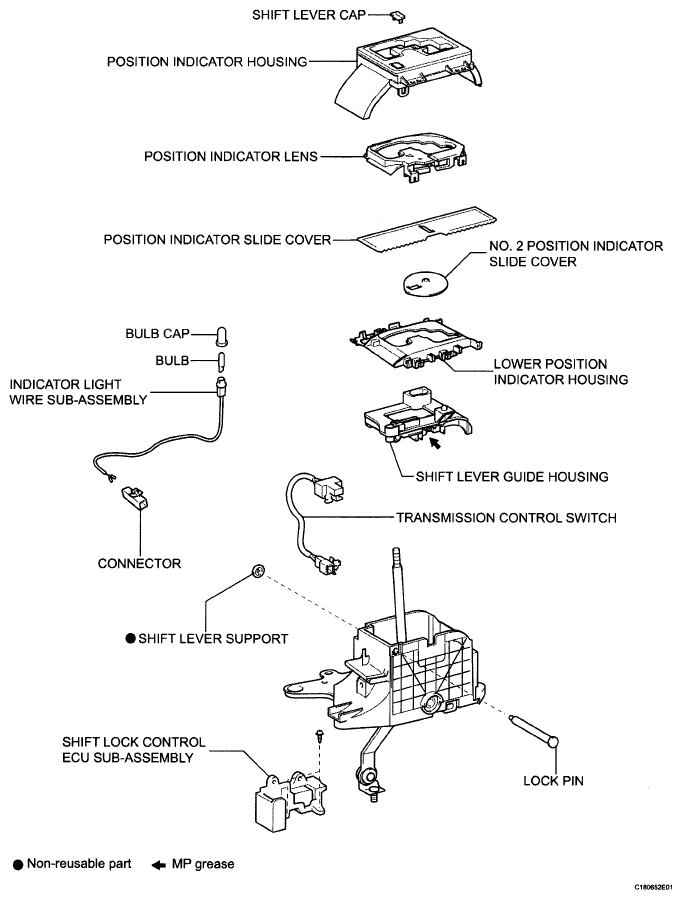

Fig 4: Identifying Shift Lever Components (4 Of 4)
G05818760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
