Oil Pump Motor Controller: Installation

CAUTION: Be sure to perform the procedure as described below. Do not turn the power switch on (READY) before the cable is connected to the negative battery terminal.

INSTALL OIL PUMP MOTOR CONTROLLER
1. Install the oil pump motor controller with the 3 bolts.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

  Fig 1: Locating Oil Pump Motor Controller Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil pump motor controller with bracket with the 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
3. Connect the clamp.

  Fig 2: Locating Oil Pump Motor Controller Clamp And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the connector and securely lock the lock lever as shown in the illustration.
  NOTE:
  - Be sure to securely lock the claw of the connector.
  - Push the connector all the way in and lock the lock lever.
  HINT:

  When the connector is pushed all the way in, the lock lever will move slightly towards the lock position.

  Fig 3: Locating Connector Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Push the lock into the lock lever to securely lock the lock lever of the connector.

  Fig 4: Pushing Lock Into Lock Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the connector to the oil pump motor controller.

  Fig 5: Locating Oil Pump Motor Controller Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install a new wiring harness protector to the wire harness.
  NOTE: Make sure that the 2 locks are securely locked.

  Fig 6: Locating Wire Harness Protector Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Using tape or equivalent, cover the area indicated in the illustration.
9. Insert the claw of the new wire harness protector into the hole in the side member and turn the claw until it touches the side member.

  Fig 7: Identifying Wiring Harness Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

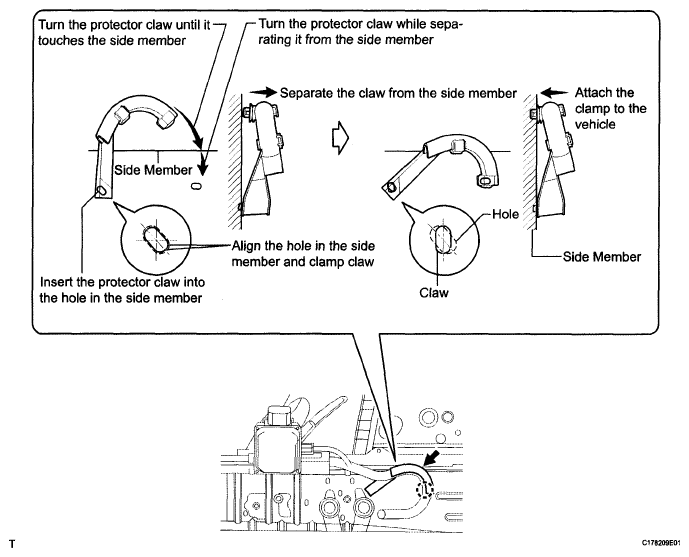

  Fig 8: Inserting Claw Of Wire Harness Protector Into Hole In Side Member
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not twist the electric oil pump harness more than 360° when installing it.
10. Separate the claw of the wire harness protector from the side member.
  NOTE: Do not apply excessive force to the wire harness protector.
11. Turn the wire harness protector to align the claw and the clamp installation hole, and install the protector to the vehicle.
12. Connect the connector and securely lock the lock lever as shown in the illustration.
  NOTE:
  - Be sure to securely lock the claw of the connector.
  - Push the connector all the way in and lock the lock lever.
  HINT:

  When the connector is pushed all the way in, the lock lever will move slightly towards the lock position.
13. Install the clamp to the bracket.
14. Push the lock into the lock lever to securely lock the lock lever of the connector.
Fig 10: Pushing Lock Into Lock Lever
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CASE (See INSTALLATION )
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (See INSTALLATION )
CONNECT NO. 2 VENTILATION HOSE (See INSTALLATION )
INSTALL NO. 1 AIR CLEANER INLET (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: Some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER RH (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
INSTALL BATTERY SERVICE HOLE COVER LH (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT FLOOR MAT
