Multiplex Communication System - AVC-LAN

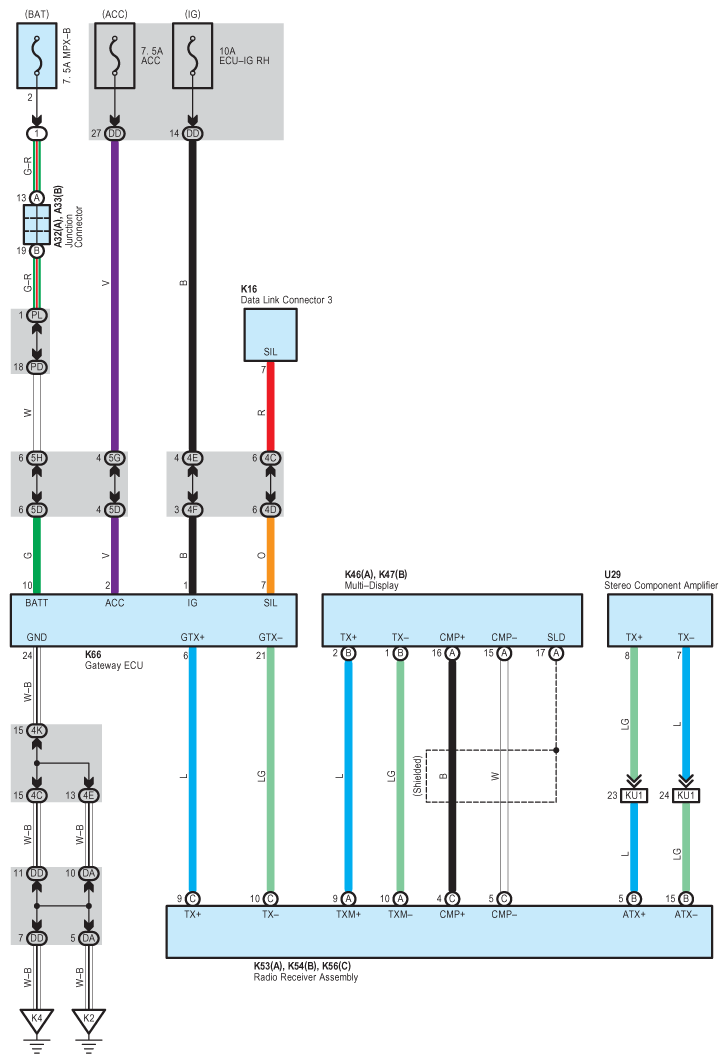

Fig 1: Multiplex Communication System - AVC-LAN - Circuit Diagram
G07613828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
