In-Line Connector End View (KA2)

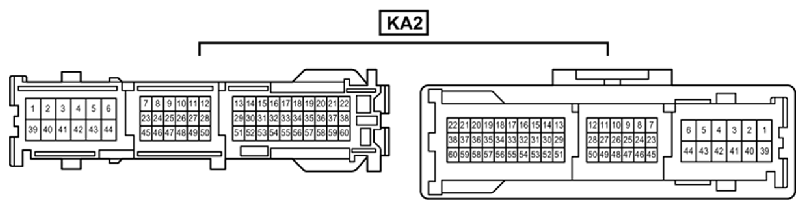

Fig 1: In-Line Connector End View (KA2)
G08399086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
