Throttle Body: Components

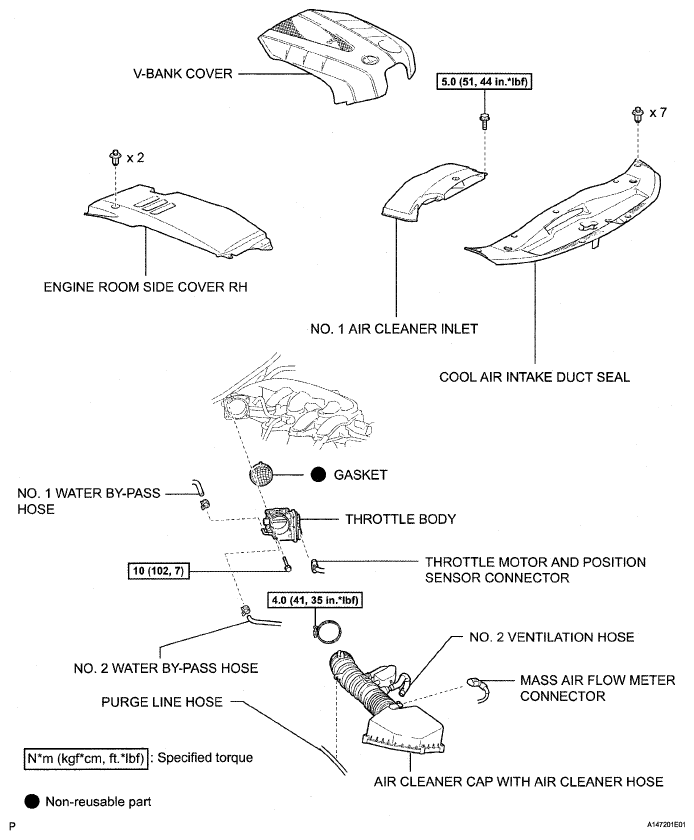

Fig 1: Throttle Body Replacement Components With Torque Specifications
G05285370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
