Parts Location

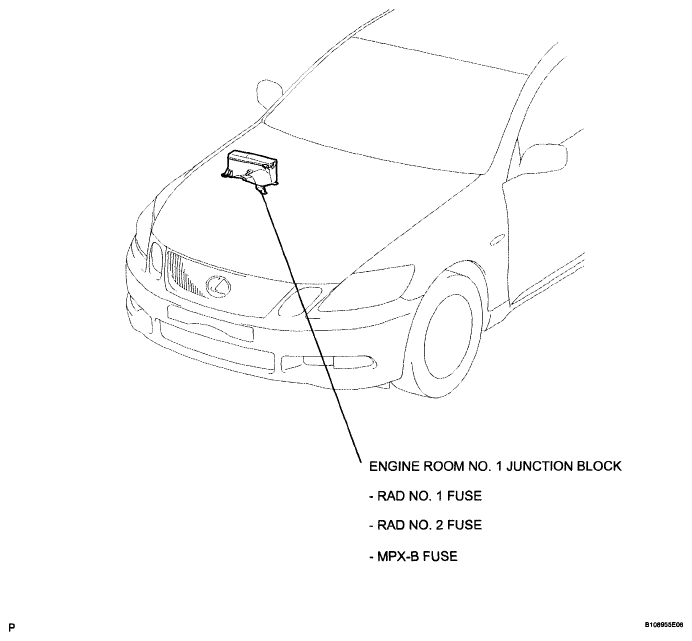

Fig 1: Identifying Engine Room No.1 Junction Block

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

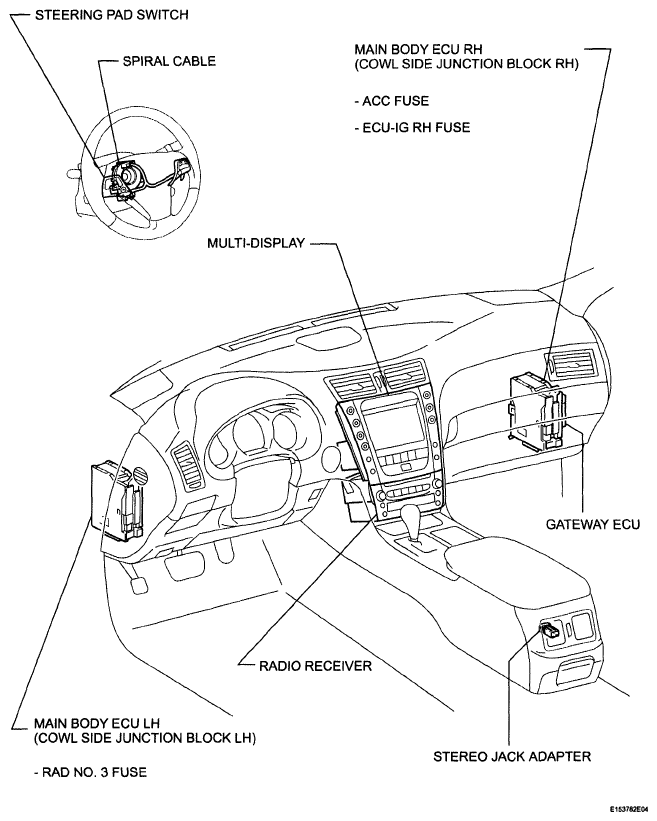

Fig 2: Identifying Audio And Visual System Parts Location (1 Of 2)

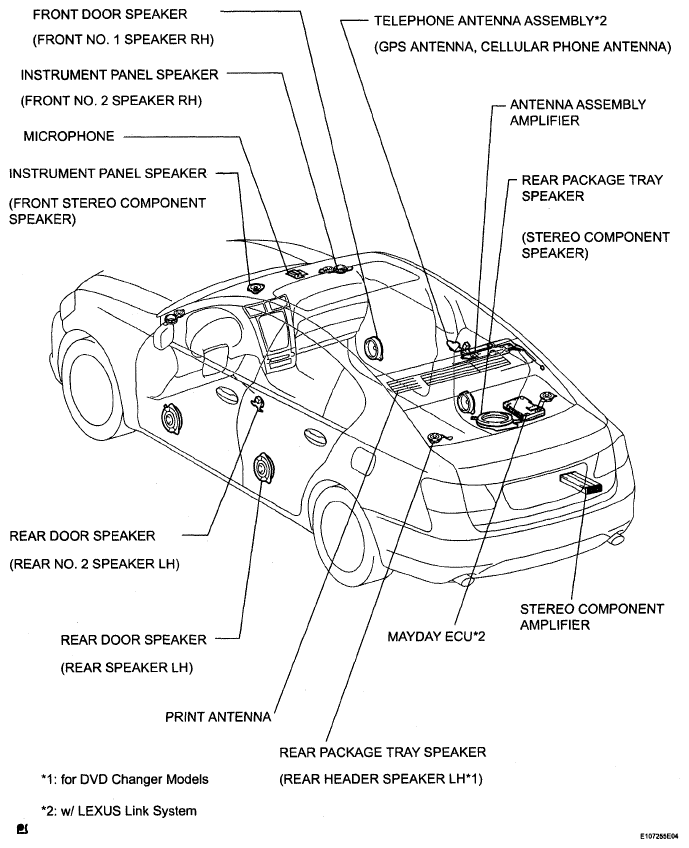

Fig 3: Identifying Audio And Visual System Parts Location (2 Of 2)
