Timing Cover

Timing chain cover

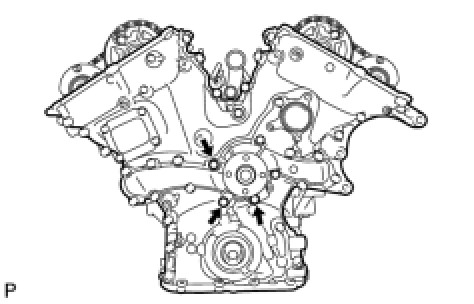

Fully tighten the 3 bolts as shown in the illustration.
Torque 43 Nm (438 kgf-cm, 32 ft-lbf)
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)





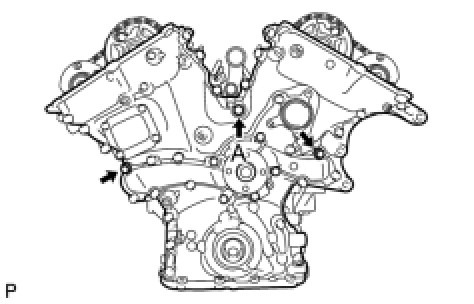

Fully tighten the 3 bolts as shown in the illustration.
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

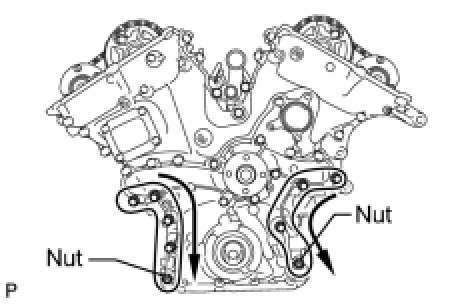

Fully tighten the 7 bolts and 2 nuts as shown in the illustration.
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
HINT:
Tighten the bolts and nuts in order from upper to lower as shown in the illustration.

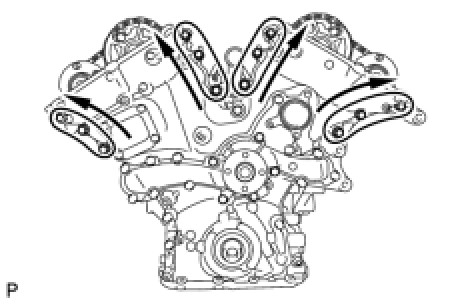

Fully tighten the 12 bolts as shown in the illustration.
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
HINT:
Tighten the bolts in order from lower to upper as shown in the illustration.
